Falcon Lock W101SQUA626-2 3/4 Passage Quantum Lever 2-3/4in Backset

Brand: FALCON LOCK
SKU: W101SQUA626-2 3/4
Availability: In Stock

Ships same day if ordered by 12 pm
$96.30
$96.30
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

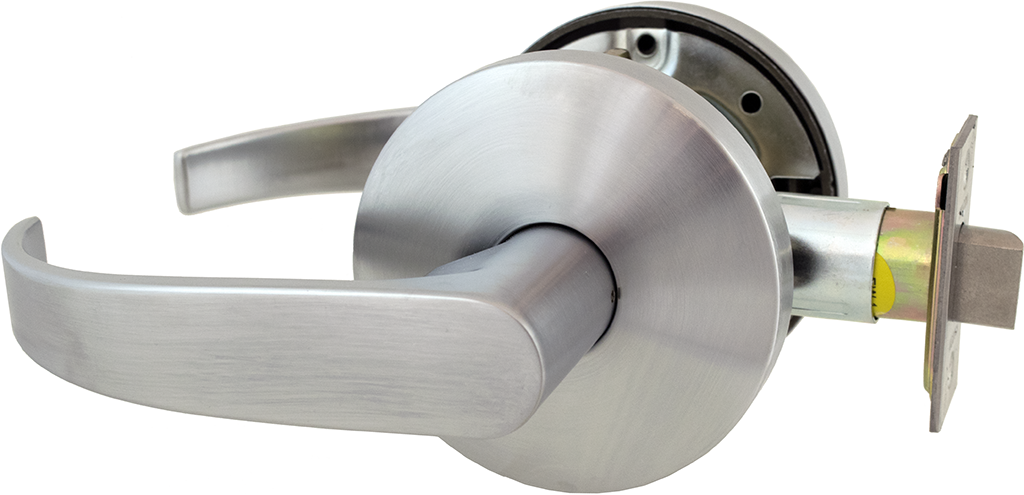

Falcon Lock W101SQUA626-2 3/4 is a medium-duty, non-keyed passage cylindrical lever in the Quantum style with a 2-3/4in backset and springlatch for low-traffic commercial doors. The Grade 2, non-handed lockset includes interchangeable core compatibility, brass and cold-formed steel components with stainless steel springs, and is UL listed for 3-hour fire doors. It fits standard 1-3/8in to 1-3/4in door thicknesses.

  • Grade 2 medium-duty construction with heavy-duty torsion springs to reduce lever sag
  • 2-3/4in backset; 1-1/8in x 2-1/4in springlatch with 1/2in bolt projection and ANSI strike
  • Non-handed design, interchangeable cores available, fits 1-3/8in to 1-3/4in doors; UL listed for 3-hour fire doors

Product Highlights

Medium-duty passage cylindrical lever, 2-3/4in backset, Grade 2, non-handed, interchangeable cores, UL 3-hour fire rated.

Product Information

Standard Information

  • Brand: FALCON LOCK
  • Manufacturer Part Number: W101SQUA626-2 3/4
Technical Specifications
Brand
Falcon Lock
MPN
W101SQUA626-2 3/4
Alternate Codes
FALW101SQUA626, FALW101SQUA626-2 3/4, FALW101SQUA62634, W101SQUA626-2 3/4, W101SQUA626234, W101SQUA626-2 3/4 BS, W101SQUA626234BS, W101SQUA62634
Category
Commercial locks, cylindrical levers, lock sets
Series
W
Function
Passage latchset (Function 101 - passage/closet latch)
Lever Design
Quantum
Backset
2-3/4in
Door Thickness Compatible
1-3/8in to 1-3/4in
Latchbolt Type
1-1/8in x 2-1/4in springlatch, square corner
Bolt Projection
1/2in
Strike Type
1-1/4in x 4-7/8in standard ANSI strike
Strike Lip Length
1-3/8in
Rose Size
Standard 3-3/8in; Small 2-9/16in
Grade
Grade 2
Certifications
ANSI A156.2; BHMA; UL listed (3-hour fire door); A label
Fire Rating
180 min
Cylinder Type
Keyless (conventional cylinder available; SFIC optional)
Key Quantity
2 (when conventional cylinder specified)
Handing
Non-handed
Door Bore Prep
Cylindrical 2.125in prep
Mechanism Materials
Brass and cold-formed steel components (zinc plated and dichromated); stainless steel springs; pressure-cast zinc levers; heavy wrought brass/bronze roses
Fasteners
Machine screws and wood screws (combination screws for wood or metal doors and frames)
Finish Code
626
Intended Use
Low-traffic commercial applications
