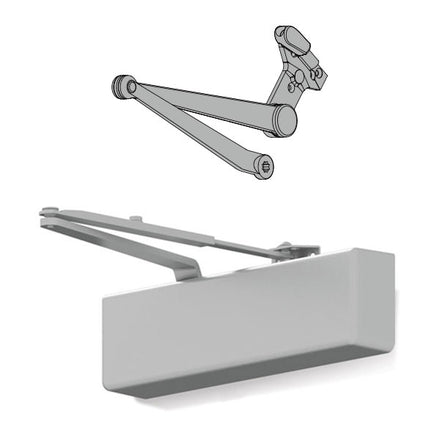

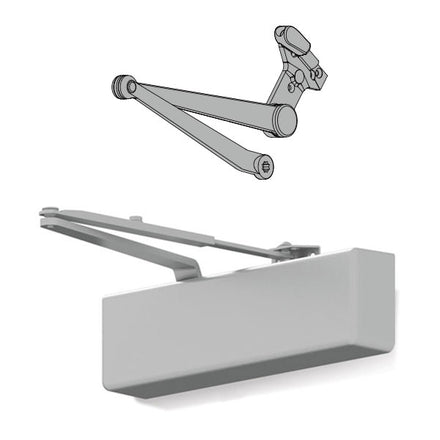

Falcon Lock SC71A-SS 695 Door Closer Parallel Arm

Product Description

The FALCON LOCK SC71A-SS 695 is a heavy-duty door closer designed for high-traffic commercial and residential applications. Part of the SC70 Series, this unit features a cast aluminum body, an adjustable spring size ranging from 1 through 6, and a parallel arm push-side mounting configuration. Finished in Dark Bronze powder coat, it provides durable corrosion resistance in interior and exterior environments. The closer is ANSI A156.4 Grade 1 certified and ADA compliant, meeting the force and closing-speed requirements that licensed door hardware technicians and general contractors expect on code-driven projects. UL listing under UL10C and UBC 7-2 makes it suitable for rated fire door assemblies.

The SC71A-SS 695 is suited for interior and exterior doors in retail shops, restaurants, apartment buildings, small offices, and similar high-traffic settings. Its non-handed design simplifies stocking and field installation. The parallel arm push-side mount is the standard configuration for applications where a regular-arm mount is not practical, such as when the door swings toward a wall or obstruction. The adjustable spring tension allows the installer to dial in closing force to meet ADA requirements or local code without replacing the unit.

Key Features

• ANSI A156.4 Grade 1 certified for heavy-duty performance
• ADA compliant closing force and speed
• UL listed to UL10C and UBC 7-2 for fire-rated door assemblies
• Cast aluminum body construction for durability and reduced weight
• Adjustable spring size 1 through 6 for field-tunable closing force
• Parallel arm push-side mount, non-handed for universal installation
• Dark Bronze powder coat finish (695) for corrosion resistance

Compatibility

Designed as an OEM-style replacement or new-installation closer for interior and exterior doors in commercial and light commercial applications requiring ANSI Grade 1 performance and parallel arm push-side mounting.

Installation Notes

Installation is typically performed by a licensed door hardware technician or general contractor following the manufacturer templating hole pattern of 2.375 inches by 6.75 inches. Verify that the door and frame are structurally sound before mounting. Follow all applicable local building codes and ADA closing-force requirements when adjusting spring tension. Always confirm fire-door-assembly integrity after installation on rated openings per the authority having jurisdiction.

Technical Specifications

• Series: SC70
• Finish: 695 Dark Bronze (Powder Coated)
• Mounting Options: Parallel Arm (Push Side)
• Templating Hole Pattern: 2.375 inches x 6.75 inches
• Spring Size: Adjustable 1-6
• Body Construction: Cast Aluminum
• Usage: Heavy Duty
• Handing: Non-Handed
• ANSI/BHMA Standard: ANSI A156.4 Grade 1
• Fire Rating: UL Listed, UL10C and UBC 7-2 compliant

Standard Information

• Brand: FALCON LOCK
• Manufacturer Part Number: SC71A-SS 695
