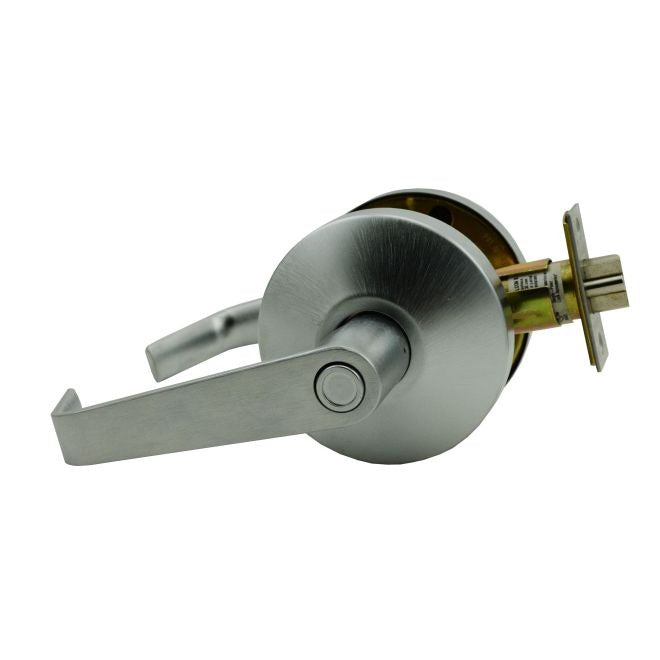

Falcon B501PDAN626 B Series Entry Dane Lever Lock

Product Description

The FALCON B501PDAN626 is a B Series entry-function lever lock designed for commercial and light commercial door hardware applications. It features a Dane lever handle, C keyway cylinder, keyed-different (KD) configuration, and ships with a 57435 latch and 5164 strike plate. The satin chrome finish (626) provides a clean, professional appearance suited to high-traffic entryways. This lock is installed by licensed locksmiths, door hardware technicians, and general contractors as part of new construction or retrofit access-control projects.

The B501PDAN626 is intended for entry-function applications where keyed exterior access and free egress from the interior are required. It is well suited to office buildings, schools, retail spaces, and other light commercial environments. The keyed-different cylinder setup means each lock ships with its own unique key, making it appropriate for installations where individual door control is needed. The included latch and strike simplify rough-in and reduce the need for separately sourced hardware.

Key Features

• Entry function: keyed exterior, free egress interior
• Dane lever handle in satin chrome finish (626)
• C keyway cylinder with keyed-different (KD) configuration
• Interchangeable core design allows re-keying without a locksmith by removing the core
• Includes 57435 latch and 5164 strike plate
• Sold individually; case quantity of 10 available

Compatibility

Designed as an OEM-style replacement or new-installation lever lock for commercial doors requiring B Series entry-function hardware with a standard cylindrical bore preparation.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with cylindrical lock sets and local building codes. Power down any access-control or electrified hardware associated with the door before beginning work. Verify door bore preparation and backset dimensions match the lock specifications prior to installation. Do not force the core during removal or insertion, as this can damage the interchangeable core mechanism.
