Falcon B101S D 626 Lever Lockset Mechanical Passage Grade 2 (Dane Style)

Brand: FALCON
SKU: B101S D 626
Availability: In Stock

Ships same day if ordered by 12 pm
$129.64
$129.64
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

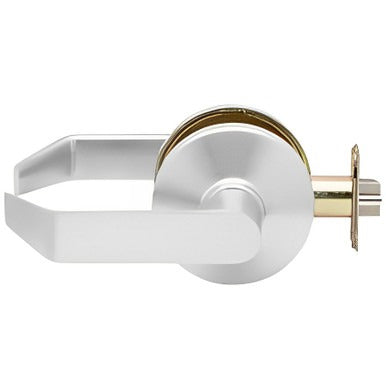

Falcon B101S D 626 is a Grade 2 mechanical cylindrical passage lever lockset in a Dane style. The non-handed levers operate a spring latch from either side and fit standard doors 1 3/8" to 2" with a 2 3/4" backset. Construction uses brass and cold-formed steel components with zinc plating and pressure-cast zinc levers. The chassis secures with through-bolted roses and the design is ANSI/BHMA A156.2 certified and UL listed for 3-hour fire doors.

  • Passage function: levers operate latch from both sides; non-handed for left or right doors
  • Fits 1 3/8" to 2" door thickness with 2 3/4" backset; 1/2" latch projection and ANSI curved-lip strike
  • Brass or cold-formed steel construction with zinc plating, pressure-cast zinc levers, through-bolted rose assembly

Product Highlights

Grade 2 cylindrical passage lever (Dane style), non-handed, ANSI/BHMA A156.2 Grade 2 certified, UL 3-hour fire listed

Product Information

Standard Information

  • Brand: FALCON
  • Manufacturer Part Number: B101S D 626
  • Country of Origin: Taiwan, Province of China
Technical Specifications
Brand
Falcon
Manufacturer Part Number
B101S D 626
Series
B-Series
Function
Passage (levers operate latch from both sides)
Grade
Grade 2
Style
Dane
Handing
Non-handed
Lock Type
Cylindrical lever lockset
Operation
Mechanical (non-electrical)
Door Thickness
1 3/8" to 2"
Backset
2 3/4" (standard)
Bolt Type
Spring latch
Latch Projection
1/2"
Strike Plate
4 7/8" x 1 1/4" curved lip (ANSI A115.2)
Rose Diameter
3-1/2"
Material
Brass or cold-formed steel components; pressure-cast zinc levers; stainless steel springs
Finish
Satin Chrome (626)
Mounting Type
Through-bolt rose assembly
Certifications
ANSI/BHMA A156.2 Series 4000, Grade 2
UL Listing
Listed for 3-hour fire door (A label)
Cylinder Options
Conventional cylinders (standard) and SFIC options; two nickel silver keys furnished with conventional cylinder
Keyway
"G" keyway standard on conventional cylinders; "A" standard on SFIC; other keyways optional
Number of Pins
6 (standard conventional cylinder)
Screws
Combination screws furnished for wood or metal doors/frames
Ligature Resistant
No
ADA Compliant
No
Country of Origin
Taiwan, Province of China
