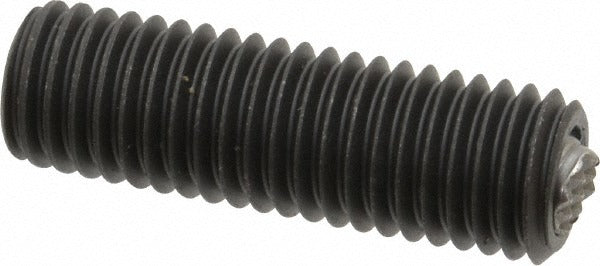

Fairlane TBU-0625X2-S Swivel Gripper Assembly 5/8-11

Product Description

The FAIRLANE TBU-0625X2-S is a threaded swivel action gripper assembly designed for workholding, fixturing, and clamping applications in industrial and manufacturing environments. It features a 5/8-11 thread size with a 2-inch thread length and a 3/8-inch high speed steel ball. The serrated, extra-fine tooth grade ball pad surface grips workpieces securely without slipping during machining or assembly operations. With a rated load capacity of 6,131 pounds, this unit is built for demanding setups where positive, reliable contact is required. Alloy steel construction with a black oxide finish provides corrosion resistance and durability in shop environments.

This gripper assembly is suited for use in precision machining fixtures, jigs, and vise setups where a swiveling contact point is needed to accommodate angled or irregular workpiece surfaces. The swivel action allows the ball pad to self-align on contact, distributing load evenly. It is installed by licensed machine builders, tool and die makers, and experienced shop technicians in both light and heavy-duty production environments. The 5/16-inch contact diameter and 1/16-inch standoff make it appropriate for close-tolerance fixture designs.

Key Features

• 5/8-11 threaded assembly with 2-inch thread length for deep fixture installation
• 3/8-inch high speed steel ball with serrated, extra-fine tooth grade pad surface for positive grip
• 6,131 lb load rating suitable for heavy-duty workholding applications
• Swivel action self-aligns to angled or irregular workpiece surfaces
• 5/16-inch internal hex drive for installation with standard hex key tooling
• Alloy steel body with black oxide finish for wear and corrosion resistance

Compatibility

Designed as a threaded swivel action gripper assembly for use in standard 5/8-11 threaded fixture, jig, and workholding applications where a swivel-contact clamping point is required.

Installation Notes

Installation is performed by machine builders or tooling technicians using a 5/16-inch hex key. Ensure the mating threaded bore is clean and properly tapped to 5/8-11 specification before threading in the assembly. Lock out and tag out any associated machinery before installing or adjusting gripper assemblies in active fixtures. Do not exceed the rated load of 6,131 pounds in service.
