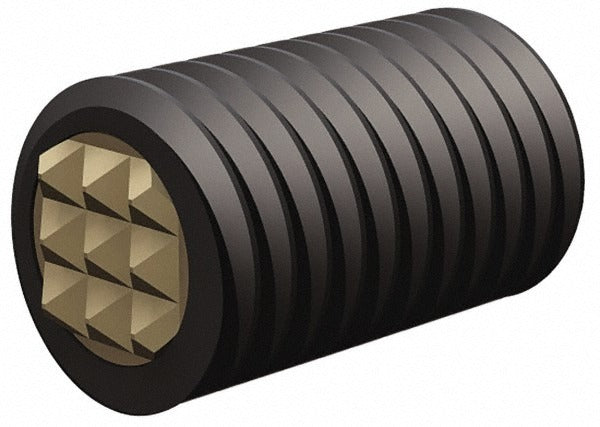

Fairlane PG-0620-EF Positioning Gripper 5/8-18 Black Oxide

Product Description

The FAIRLANE PG-0620-EF is a fully threaded adjustable positioning gripper designed for secure, repeatable part location in fixture and workholding applications. It features a carbide-tipped serrated tooth pad with an extra fine tooth grade, delivering firm grip on workpieces without damaging finished surfaces. The 5/8-18 thread size and 1 inch thread length allow precise height adjustment, while the 5/16 inch internal hex drive enables easy torque with standard tooling. The black oxide finish provides corrosion resistance for use in industrial shop environments. This gripper is installed by machine builders, fixturing technicians, and manufacturing engineers working with precision positioning equipment.

The PG-0620-EF is suited for use in jigs, fixtures, and modular workholding setups where repeatable part positioning is required. The extra fine serrated tooth pattern engages workpiece surfaces with consistent holding force across cycles. The 1/2 inch pad diameter contacts the workpiece directly, making it appropriate for compact fixture layouts where space between locating points is limited. This gripper is a common component in custom fixture builds for machining, assembly, and inspection stations in both job shop and production environments.

Key Features

• Carbide-tipped pad provides long service life under repeated clamping cycles
• Extra fine serrated tooth pattern delivers controlled grip without gouging workpiece surfaces
• Fully threaded body allows continuous height adjustment along the full 1 inch thread length
• 5/16 inch internal hex drive for installation and adjustment with standard hex keys
• 5/8-18 thread size compatible with standard fixture plate tapped holes
• Black oxide finish adds corrosion resistance for shop floor conditions

Compatibility

Designed as an OEM-style replacement or direct-fit component for modular fixturing systems accepting 5/8-18 threaded positioning grippers.

Installation Notes

Installation is typically performed by fixturing or tooling technicians using a 5/16 inch hex key. Ensure the mating tapped hole is clean and free of chips before threading in the gripper. Disengage any clamping force from the fixture before adjusting gripper height to avoid damage to the tooth pad or workpiece. Follow applicable shop safety procedures and equipment lockout protocols when working on active fixtures or automated cells.
