Fairlane HS-95 Square Positioning Gripper 10-32 Hss

Product Description

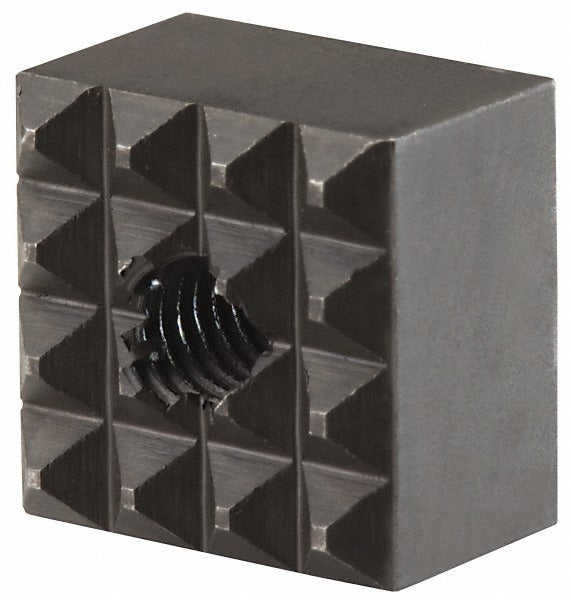

The FAIRLANE HS-95 is a square positioning gripper designed to locate and hold workpieces securely during machining, assembly, or fixture operations. Measuring 0.5 inches square and 0.375 inches high, this compact gripper features a 10-32 fine thread for precise installation into threaded fixtures or jigs. Constructed from high speed steel with a black oxide finish, the HS-95 delivers hardness and wear resistance suited to repeated use in production environments. The diamond serration pattern and fine tooth grade provide strong gripping force against metal, plastic, and composite workpiece surfaces. A 0.03 x 45-degree chamfer aids in part alignment and seating. Typically installed by machinists, toolmakers, and fixture builders.

The HS-95 is used in workholding fixtures, jigs, and locating plates across light and heavy manufacturing environments. It is well suited to applications where consistent part positioning is critical, such as CNC machining setups, assembly fixtures, and inspection fixtures. The fine tooth diamond serration pattern bites into workpiece surfaces without causing excessive marking, making it appropriate for both rough and finished part handling. The 10-32 thread size fits standard tapped holes in steel and aluminum fixture plates. Non-counterbored construction keeps the profile low and the mounting footprint minimal.

Key Features

• Diamond serration pattern with fine tooth grade for reliable workpiece grip
• High speed steel construction for hardness and long service life
• Black oxide finish for corrosion resistance in shop environments
• 0.03 x 45-degree chamfer aids workpiece alignment and seating
• 10-32 fine thread for secure installation in standard fixture plates
• Non-counterbored design keeps mounting profile low

Compatibility

Designed as a standard replacement or new-installation square positioning gripper for workholding fixtures, locating jigs, and assembly plates using 10-32 threaded mounting holes.
