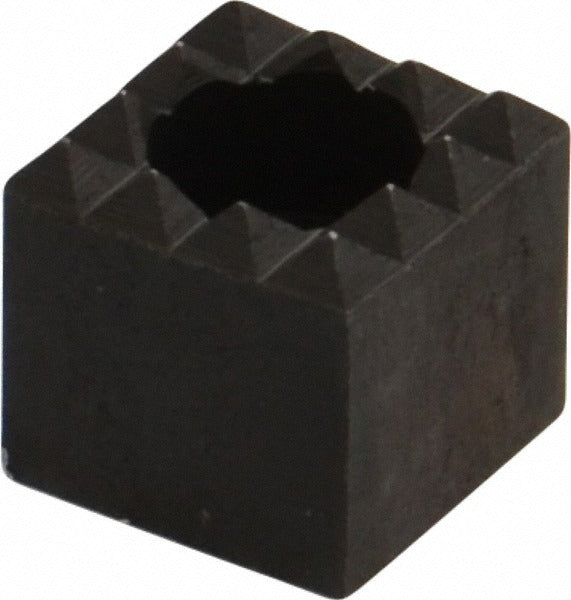

Fairlane HS-95-C Square Positioning Gripper Hss Diamond

Product Description

The FAIRLANE HS-95-C is a square positioning gripper designed to locate and hold workpieces securely during machining, assembly, or fixturing operations. Measuring 0.5 inches square and 0.5 inches high, this front-mount gripper is machined from high speed steel (HSS) for durability and wear resistance in production environments. The diamond serration pattern on the gripping face provides reliable bite and consistent positioning force. A black oxide finish reduces surface reflectivity and offers moderate corrosion resistance. The counterbored through-hole accepts a size 10 socket head cap screw (SHCS) for secure mounting, with a counterbore depth of 0.25 inches. A 0.03 inch by 45-degree chamfer is machined at the contact edge. This part is installed by machinists, toolmakers, and fixture builders.

The HS-95-C is suited for use in jigs, fixtures, and workholding systems where consistent square-edge part location is required. The fine tooth grade provides controlled gripping without excessive workpiece marring, making it appropriate for applications where surface condition matters. Front-mount installation keeps the fastener accessible during setup and changeover. This gripper is a standard catalog component used in both prototype and production fixturing.

Key Features

• Diamond serration pattern for reliable workpiece grip and consistent location
• Fine tooth grade for controlled gripping force without excessive surface damage
• High speed steel construction for hardness and wear resistance
• Black oxide finish for reduced reflectivity and moderate corrosion resistance
• Counterbored mounting hole sized for a size 10 SHCS, front-mount installation
• 0.03 inch by 45-degree chamfer machined at contact edge

Compatibility

Designed as a standard front-mount square positioning gripper for use in machining fixtures, jigs, and workholding assemblies where 0.5 inch square geometry and fine diamond serration are specified.

Installation Notes

Installation is performed by toolmakers or fixture builders using a socket head cap screw in the counterbored through-hole. Ensure the mating fixture surface is clean and flat before seating the gripper to maintain accurate location. Torque the SHCS according to the fastener manufacturer's specification for the thread size used. Deburr the fixture pocket if needed to prevent gripper tilt.
