Fairlane HS-92-C Square Positioning Gripper Hss Diamond

Product Description

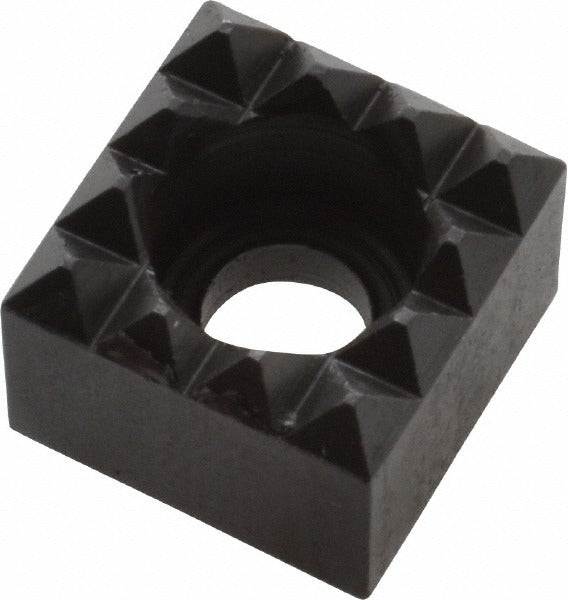

The FAIRLANE HS-92-C is a square positioning gripper designed for workholding and fixturing applications in precision machining environments. Measuring 0.5 inches square and 0.375 inches high, this gripper uses diamond serration and a fine tooth grade to provide positive, repeatable gripping force on workpieces. Constructed from high speed steel with a black oxide finish, the HS-92-C is built to resist wear and corrosion in demanding shop conditions. A front-mount configuration and counterbored design accommodate a size 10 socket head cap screw for secure installation. The 0.03 x 45-degree chamfer and 0.25 inch counterbore depth are machined in for clean, precise fitment in standard fixture plates.

Square positioning grippers are used in CNC machining, milling, and manual fixturing setups where parts must be accurately located and held without movement during cutting operations. The HS-92-C is suited for installation in fixture plates, tombstones, and modular workholding systems where consistent part positioning across multiple setups is required. Machinists and tooling engineers working in job shops and production environments rely on grippers of this type to reduce setup variation and improve repeatability.

Key Features

• Diamond serration pattern delivers aggressive grip and positive part location
• Fine tooth grade for high-precision fixturing applications
• High speed steel construction for wear resistance and long service life
• Black oxide finish reduces surface corrosion and light reflection
• Counterbored for size 10 SHCS mounting with 0.25 inch counterbore depth
• 0.03 x 45-degree chamfer included for ease of installation and seating

Compatibility

Designed as an OEM-style replacement or direct addition for standard fixture plates and modular workholding systems that accept front-mount square positioning grippers with a size 10 socket head cap screw bore pattern.

Installation Notes

Installation is typically performed by a machinist or tooling engineer using standard hex key tooling. Ensure the fixture plate or receiver pocket is clean and free of chips before seating the gripper. Confirm the mating SHCS is tightened to the fixture manufacturer's specification. Do not overtighten, as this may distort the serration face and reduce gripping accuracy.
