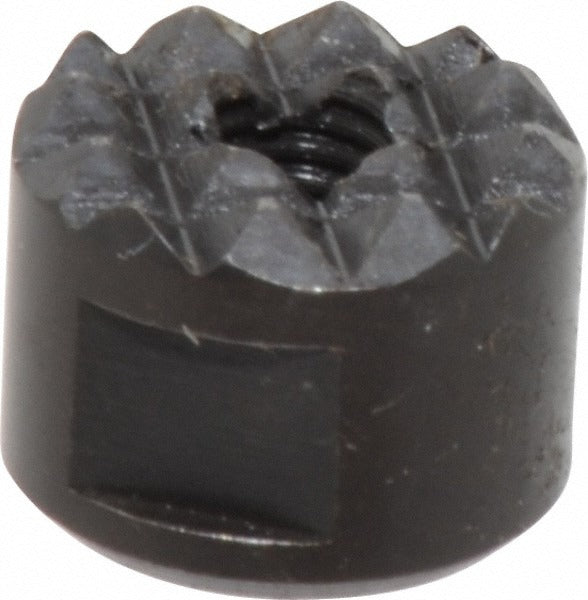

Fairlane HS-50 Round Positioning Gripper Threaded 10-32

Product Description

The FAIRLANE HS-50 is a round positioning gripper designed to locate and hold workpieces accurately during machining, assembly, or fixturing operations. Manufactured from high speed steel with a black oxide finish, this gripper delivers hardness and wear resistance suited to repeated industrial use. It features a fine tooth grade diamond serration pattern that bites into workpiece surfaces to prevent slipping under load. The threaded 10-32 attachment style allows direct installation into fixture plates, jigs, or tooling blocks. At 0.5 inches in diameter and 0.38 inches in height, it fits compact fixture layouts without compromising grip performance.

This gripper is used in precision machining and assembly fixturing applications where consistent part location is critical. It is well suited for use in CNC fixture plates, welding jigs, inspection fixtures, and manual assembly stations. The threaded mount makes it straightforward to install or replace in existing tooling setups. Tool and fixture builders, machine shop technicians, and manufacturing engineers are the primary installers of this component.

Key Features

• Fine tooth grade diamond serration pattern provides positive grip on workpiece surfaces
• High speed steel construction offers hardness and long service life in industrial environments
• Black oxide finish provides mild corrosion resistance and reduced surface glare
• Threaded 10-32 attachment allows direct installation into standard fixture tooling
• Compact 0.5 inch diameter and 0.38 inch height fits tight fixture layouts
• 3/16 inch flat width supports wrench installation and removal

Compatibility

Designed as an OEM-style positioning component for use in standard threaded fixture plates, jigs, and tooling blocks that accept a 10-32 threaded insert.

Installation Notes

Installation is performed by tool and fixture builders using standard hand tools sized for a 10-32 thread. Power down and de-energize any associated machinery before servicing or replacing grippers in active fixtures. Use the 3/16 inch flat to seat the gripper to the correct depth without overdriving the threads. Inspect the serration pattern before installation to confirm the tooth profile is undamaged and free of debris.
