Fairlane HS-127-4 Angled Positioning Gripper 4 Point

Product Description

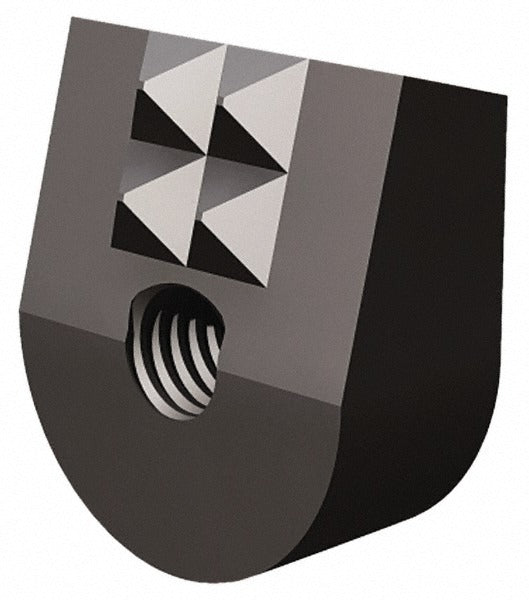

The FAIRLANE HS-127-4 is a 4-point angled positioning gripper machined from high speed steel with a black oxide finish. It is designed to grip and locate workpieces at a 15-degree gripping angle, making it well suited for fixturing applications that require repeatable part positioning. The compact profile measures 0.375 inches high and 0.5625 inches wide, fitting into tight fixture designs without sacrificing holding force. Licensed machinists, fixture builders, and tooling engineers typically specify this gripper for production jigs and workholding setups.

This gripper is used in industrial tooling and fixture applications where consistent, repeatable workpiece location is required. The 10-32 threaded mount allows straightforward integration into standard fixture plates and modular tooling systems. The black oxide finish provides a degree of corrosion resistance suitable for shop-floor environments. It is appropriate for both prototype and production fixturing in metalworking and precision machining operations.

Key Features

• 4-point tooth pattern for secure, multi-contact workpiece grip
• 15-degree gripping angle for angled approach and positive location
• High speed steel construction for durability in demanding fixturing environments
• Black oxide finish for corrosion resistance
• 10-32 threaded mount for compatibility with standard fixture plates
• Compact geometry: 0.375 inches high, 0.5625 inches wide, 0.65 inches top length, 0.6 inches bottom length

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard modular fixturing systems accepting a 10-32 threaded angled positioning gripper.

Installation Notes

Installation is typically performed by tooling engineers or fixture builders using standard threading tools compatible with 10-32 fasteners. Ensure the fixture plate or mounting surface is clean and free of burrs before seating the gripper. De-energize or lock out any automated fixturing equipment before servicing or replacing grippers. Follow applicable shop safety and machine guarding procedures during installation.
