Fairlane HS-101-C Square Positioning Gripper 1in Hss

Product Description

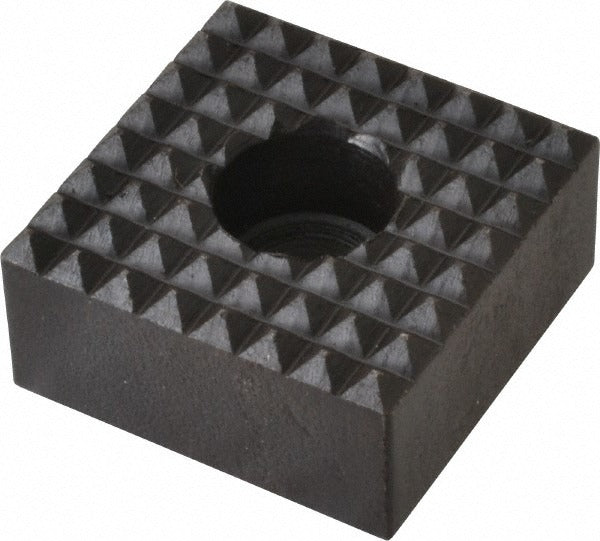

The FAIRLANE HS-101-C is a square positioning gripper designed to locate and hold workpieces securely during machining, fixturing, and assembly operations. Measuring 1 inch square and 1/2 inch high, this gripper features diamond serrations in a fine tooth grade pattern that bite into workpiece surfaces to resist slipping under load. The counterbored mounting hole accepts a 1/4-inch SHCS and is bored to a 5/16-inch counterbore depth, keeping the fastener head below the seating surface. Constructed from high speed steel with a black oxide finish, the HS-101-C delivers hardness and wear resistance appropriate for demanding production environments. A 0.03 x 45-degree chamfer is machined on the face.

This positioning gripper is suited for use in workholding fixtures, jigs, and modular tooling setups found in machine shops, manufacturing cells, and precision assembly lines. It mounts from the front and is oriented square to provide repeatable part registration across high-volume runs. The fine tooth diamond serration pattern is well matched to applications requiring positive grip on ferrous and non-ferrous workpiece materials without aggressive surface damage. Machinists, fixture builders, and tooling engineers are the primary installers of this component.

Key Features

• 1 inch square by 1/2 inch high body for compact, repeatable workholding
• Diamond serration pattern in fine tooth grade for secure, controlled grip
• High speed steel construction for hardness and long service life
• Black oxide finish for corrosion resistance and reduced glare
• Counterbored 1/4-inch SHCS mounting hole with 5/16-inch counterbore depth keeps fastener flush
• 0.03 x 45-degree chamfer on face for clean workpiece seating

Compatibility

Designed for use in front-mount fixturing and workholding applications requiring a 1-inch square positioning gripper with a counterbored 1/4-inch SHCS mounting hole. Verify bore size, counterbore depth, and overall height against fixture drawings before installation.
