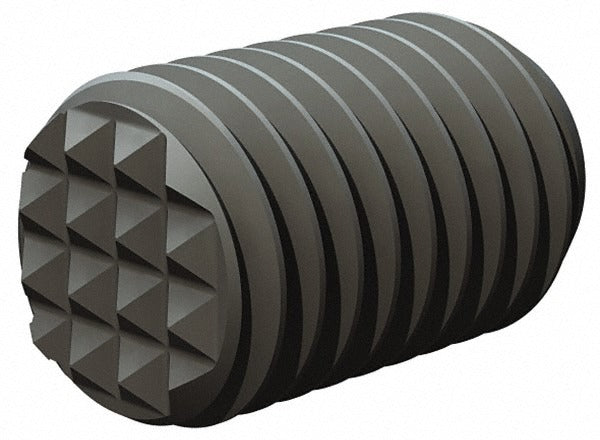

Fairlane HS-0500 Adjustable Positioning Gripper 1/2-20

Product Description

The FAIRLANE HS-0500 is an adjustable positioning gripper designed for precise workholding and fixture applications. This fully threaded gripper features a serrated tooth pattern with a fine tooth grade, providing reliable clamping force and repeatable positioning. The 1/2-20 thread allows for controlled adjustment, while the 3/16-inch internal hex drive enables installation and tensioning with a standard hex key. The black oxide finish provides corrosion resistance in typical shop environments. Installed by tooling engineers, fixture builders, and industrial maintenance technicians, this gripper suits applications where secure, repeatable part location is required.

The HS-0500 is suited for use in machining fixtures, assembly jigs, and workholding setups where adjustable clamping or part positioning is needed. The 1.5-inch thread length provides a meaningful engagement range, accommodating variation in fixture plate thickness or positional requirements. The fully threaded design allows for fine positional adjustment along the entire thread length, making it adaptable across a range of fixturing configurations in both production and maintenance settings.

Key Features

• Fully threaded body allows adjustment along the entire 1.5-inch thread length
• Serrated fine tooth pattern delivers positive grip and minimized part slippage
• 1/2-20 thread provides precise positional control
• 3/16-inch internal hex drive for installation with a standard hex key
• Black oxide finish for corrosion resistance in shop environments

Compatibility

Designed as an OEM-style adjustable positioning gripper for use in industrial fixturing, workholding, and assembly jig applications requiring 1/2-20 fully threaded grippers with a serrated tooth pattern.

Installation Notes

Installation is typically performed by tooling or maintenance technicians using a 3/16-inch hex key. Ensure the mating fixture or plate thread is clean and free of debris before installation. Do not exceed the torque capacity of the fixture material, and confirm thread engagement is sufficient for the intended clamping load before placing the assembly into service.
