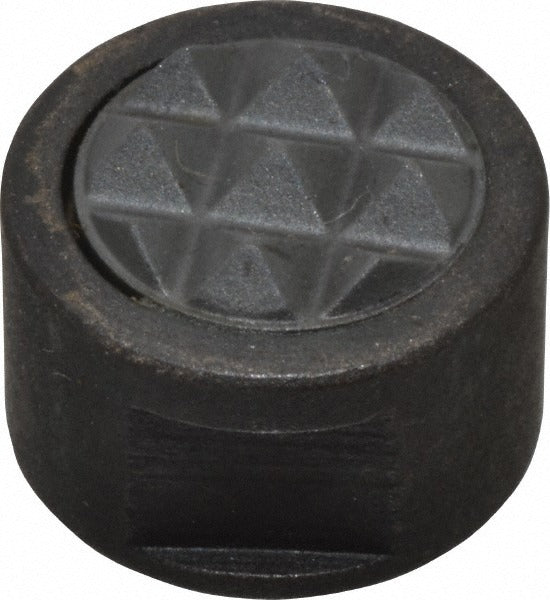

Fairlane CT-841 Round Positioning Gripper Carbide 10-32

Product Description

The FAIRLANE CT-841 is a carbide-tipped round positioning gripper designed to hold, locate, and stabilize workpieces during machining, assembly, and fixturing operations. It features a fine-tooth diamond serration pattern that bites into workpiece surfaces to prevent slipping under load. At 0.5 inches in diameter and 0.38 inches in height, the CT-841 is compact enough for tight fixture layouts. The threaded attachment style uses a 10-32 thread for secure, repeatable installation in fixture plates and jigs. Machinists, toolmakers, and fixture builders install this gripper where consistent part positioning is required on production and prototype setups.

The CT-841 is suited for industrial fixturing applications in manufacturing environments where workpiece slippage must be eliminated. The diamond serration tooth pattern distributes grip force evenly across the contact surface, making it effective on flat and lightly curved workpiece faces. The fine-tooth grade delivers precise grip without gouging or damaging finished surfaces beyond acceptable fixturing marks. It is installed in threaded fixture plates, modular tooling systems, and custom jig bodies used in both short-run and high-volume production settings.

Key Features

• Carbide-tipped contact surface for extended wear life under repeated use
• Fine-tooth diamond serration pattern provides reliable grip without excessive surface damage
• 10-32 threaded attachment for secure, repeatable installation in fixture plates
• Compact 0.5 inch diameter and 0.38 inch height fits tight fixture layouts
• 3/16 inch flat width for wrench engagement during installation and removal
• Uncoated finish maintains dimensional consistency for precision fitment

Compatibility

Designed for use in threaded fixture plates, modular tooling systems, and custom jig bodies accepting 10-32 threaded positioning grippers.

Installation Notes

Installation is typically performed by toolmakers or fixture technicians using a wrench on the 3/16 inch flat. Ensure the receiving fixture plate is tapped to 10-32 specification before installation. Power down and lock out any associated machinery before servicing fixture components. Do not overtighten, as carbide-tipped grippers are brittle and can crack under excessive torque.
