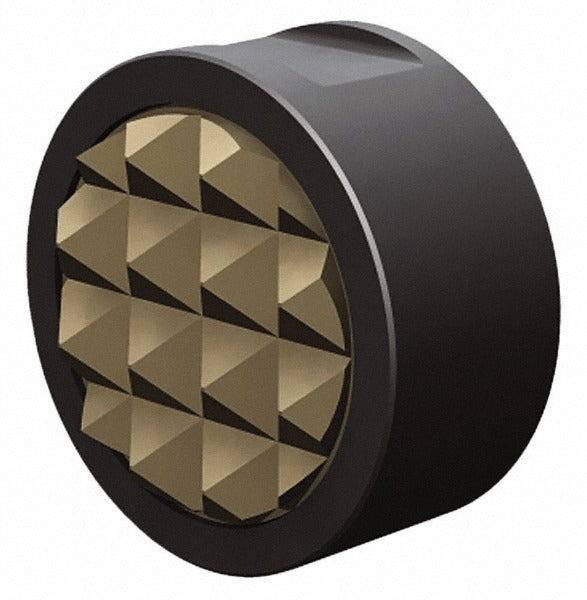

Fairlane CT-840-EF Round Positioning Gripper 10-32 Thread

Product Description

The FAIRLANE CT-840-EF is a carbide-tipped round positioning gripper designed to secure workpieces accurately during machining, assembly, or fixturing operations. Measuring 0.5 inches in diameter and 0.5 inches in height, this compact gripper features a 10-32 threaded attachment style for straightforward installation into standard fixturing plates and tooling blocks. The diamond serration tooth pattern at an extra fine tooth grade delivers precise, repeatable grip on workpiece surfaces without causing excessive marking. Machinists, tooling engineers, and fixture builders rely on this type of gripper to maintain part location under lateral and rotational loads.

The CT-840-EF is suited for use in precision machining fixtures, assembly jigs, and automated positioning systems where consistent part registration is critical. Its carbide-tipped construction handles repeated contact cycles and abrasive workpiece materials better than standard steel grippers. The 3/16 inch flat width provides a defined contact geometry, and the uncoated finish keeps tolerances consistent out of the box. This gripper is a direct threaded installation into any fixture plate tapped to 10-32, making it a common choice in tight-tolerance production environments.

Key Features

• Carbide-tipped contact surface for extended service life under repeated use
• Extra fine diamond serration tooth pattern for precise, low-marking workpiece grip
• 10-32 threaded attachment for fast installation into standard fixture plates
• 0.5 inch diameter and 0.5 inch height for use in compact fixture layouts
• 3/16 inch flat width provides consistent contact geometry
• Uncoated finish maintains dimensional accuracy as-received

Compatibility

Designed as a threaded round positioning gripper for use in fixture plates, tooling blocks, and assembly jigs tapped to 10-32.

Installation Notes

Installation is performed by tooling engineers or machinists using standard hand tools. The gripper threads into a 10-32 tapped hole in the fixture plate. Confirm the fixture plate material and thread depth are appropriate before installation. De-energize or lock out any automated equipment before servicing or replacing grippers in active fixturing systems.
