Fairlane CT-835 Round Positioning Gripper 3/8 in Threaded 10-32

Product Description

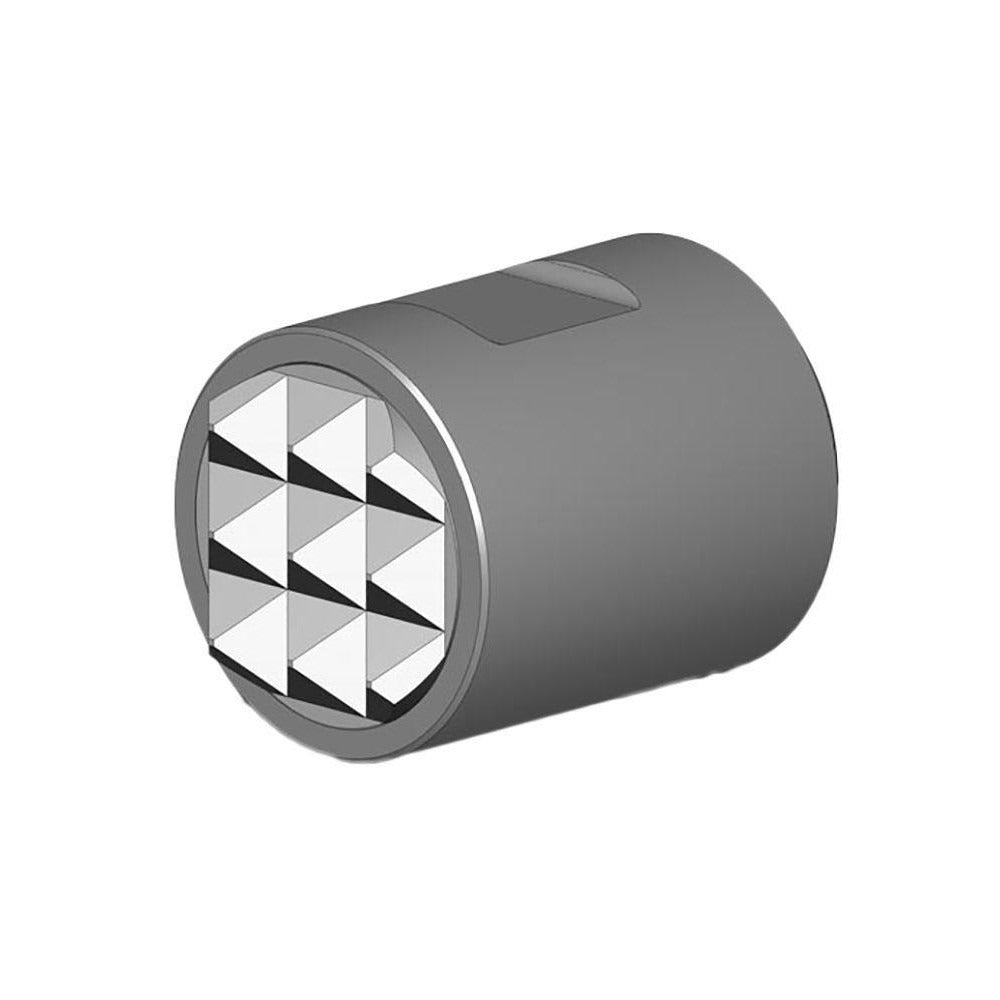

The FAIRLANE CT-835 is a carbide-tipped round positioning gripper designed to hold workpieces securely in jigs, fixtures, and assembly tooling. It features an extra fine tooth grade diamond serration pattern that bites into material surfaces to prevent slipping or shifting under load. The gripper measures 3/8 inches in diameter and 1/2 inch in height with a 10-32 threaded shank for straightforward installation into standard threaded fixture plates and bodies. A 3/16 inch flat width aids tool engagement during installation. This part is installed by tooling engineers, fixture builders, and machine shop technicians.

The CT-835 is suited for use in precision workholding applications where reliable, repeatable part positioning is required. It is commonly installed in fixture plates, jig bodies, and modular tooling setups in manufacturing and assembly environments. The threaded attachment style allows the gripper to be installed or replaced without specialized tooling, making it practical for both new fixture builds and maintenance replacements. The uncoated carbide tip delivers consistent grip performance across a range of workpiece materials.

Key Features

• Extra fine tooth grade diamond serration pattern for positive workpiece grip
• Carbide-tipped contact surface for wear resistance and durability
• 10-32 threaded shank for standard fixture plate installation
• Compact 3/8 inches diameter by 1/2 inch height for use in tight fixture layouts
• 3/16 inch flat width for wrench engagement during installation
• Uncoated finish - no coating buildup to affect grip geometry over time

Compatibility

Designed as a direct-install positioning gripper for fixtures and jig bodies with 10-32 threaded ports in manufacturing and assembly tooling applications.

Installation Notes

Installation is performed by tooling technicians or fixture builders using a wrench sized to the 3/16 inch flat. Thread the gripper into a 10-32 tapped hole in the fixture body and tighten to seat the serrated face at the correct protrusion height for the application. Ensure the workpiece and fixture are free of chips or debris before seating to maintain accurate positioning. Carbide tips are brittle - avoid impact or side-loading during handling and installation.
