Fairlane CR-4 Solid Carbide Rectangle Gripper Pad Saw Tooth

Product Description

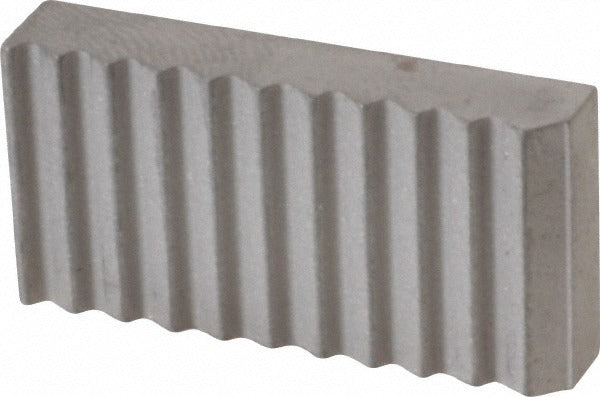

The FAIRLANE CR-4 is a solid carbide rectangle positioning gripper pad designed to hold workpieces firmly during machining, fixturing, and clamping operations. Measuring 1 inch long by 0.5 inch wide by 0.1875 inch high, this compact pad features a saw tooth grade and saw tooth pattern that bites into workpiece surfaces to prevent slipping under load. Solid carbide construction delivers high hardness and wear resistance, making it well suited for demanding production environments where consistent positioning is critical. Machinists, toolmakers, and fixture builders install these pads where reliable gripping contact is needed without workpiece damage from oversized or inappropriate fixturing elements.

The CR-4 gripper pad is used in jigs, fixtures, clamps, and other workholding assemblies found in machine shops and production facilities. It is typically brazed or bonded directly into a pocket or seating feature machined into the fixture body. The rectangular profile and precise dimensions allow straightforward drop-in replacement or new installation in standard fixture designs. This pad is appropriate for both light-duty prototype fixtures and high-cycle production tooling where dimensional consistency and grip repeatability are required.

Key Features

• Solid carbide construction for high hardness and long service life in abrasive fixturing environments
• Saw tooth grade and saw tooth pattern for positive workpiece grip under clamping load
• Rectangle profile with compact 1 inch by 0.5 inch footprint fits standard fixture pocket dimensions
• Compatible with brazing or bonding installation methods for permanent fixture mounting
• Low 0.1875 inch height minimizes fixture stack-up while maintaining effective gripping surface

Compatibility

Designed for use in brazed or bonded applications within jigs, fixtures, and clamps requiring a solid carbide rectangle gripper pad with a saw tooth pattern.

Installation Notes

Installation is typically performed by toolmakers or machinist-level personnel. The pad is brazed or bonded into a precision-machined pocket sized to match the pad footprint. Ensure the seating pocket is clean and free of debris before applying brazing alloy or adhesive. Follow the fixture or clamp manufacturer guidelines for clearance tolerances and cure or braze temperatures appropriate to solid carbide components.
