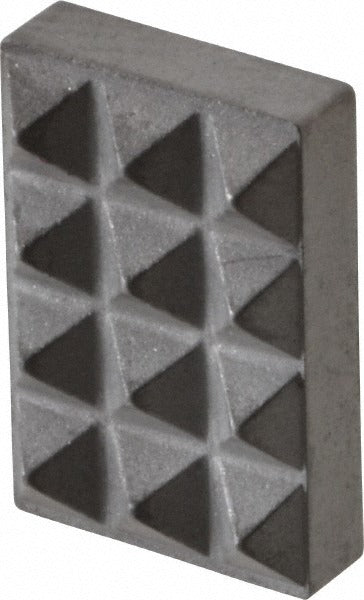

Fairlane CR-2-EF Carbide Rectangle Positioning Gripper Pad

Product Description

The FAIRLANE CR-2-EF is a solid carbide rectangle positioning gripper pad designed to secure workpieces during machining, assembly, and automated handling operations. Measuring 3/8 inches long by 1/4 inches wide by 1/8 inches high, this pad features an extra fine tooth grade with a diamond tooth pattern that grips part surfaces firmly without causing damage to finished or semi-finished workpieces. The solid carbide construction delivers the hardness and wear resistance needed for high-cycle industrial environments. Machinists, toolmakers, and automation technicians install these pads in fixtures, jigs, and end-of-arm tooling where consistent, repeatable part location is critical.

This gripper pad is suited for precision fixturing applications across light manufacturing, machining centers, and assembly automation. The rectangle profile fits standard gripper pad pockets and locating fixture slots. The extra fine diamond tooth pattern is especially useful where part surfaces must be held securely but cannot tolerate aggressive marking or indentation, making it a practical choice for finishing operations, inspection fixtures, and delicate part handling in both low- and high-volume production settings.

Key Features

• Solid carbide construction for exceptional hardness and long service life in high-cycle applications
• Extra fine tooth grade minimizes surface marking while maintaining reliable grip force
• Diamond tooth pattern distributes clamping load evenly across the contact area
• Rectangle profile fits standard gripper pad pockets and fixture locating slots
• Compact dimensions (3/8 inches x 1/4 inches x 1/8 inches) suit tight-clearance fixture designs

Compatibility

Designed as an OEM-style replacement or direct-fit gripper pad for rectangle-pocket positioning fixtures and automated grippers that accept pads measuring 3/8 inches long by 1/4 inches wide by 1/8 inches high.

Installation Notes

Gripper pads of this type are typically installed by toolmakers or automation technicians using standard fixture assembly procedures. De-energize and lock out any pneumatic, hydraulic, or electrical clamping systems before replacing pads. Ensure the mounting pocket is clean and free of chips or debris before seating the pad to maintain proper locating accuracy. Consult fixture manufacturer documentation for recommended retention method, such as press fit, adhesive, or mechanical fastener.
