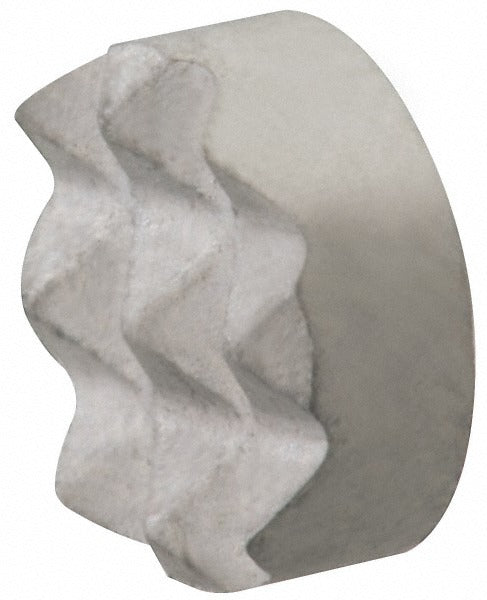

Fairlane CC-3-EF Round Positioning Gripper Pad Carbide

Product Description

The FAIRLANE CC-3-EF is a solid carbide round positioning gripper pad designed to securely locate and hold workpieces during machining, assembly, and automation operations. Measuring 0.375 inches in diameter and 0.125 inches high, this pad features an extra fine tooth grade with a diamond tooth pattern that bites into workpiece surfaces to prevent slipping without causing significant surface damage. Solid carbide construction provides exceptional hardness and wear resistance, making it suitable for demanding industrial environments where repeatability and holding force are critical.

This gripper pad is used in precision workholding applications across machine shops, assembly fixtures, and automated handling systems. It is typically pressed or threaded into fixture plates, robotic end-of-arm tooling, and locating pins where a small-footprint, high-grip contact point is needed. The round pad geometry suits standard locating pin bores and circular pocket configurations common in modular fixturing systems.

Key Features

• Extra fine tooth grade minimizes surface marring while maintaining positive grip
• Diamond tooth pattern provides multi-directional holding force
• Solid carbide construction for long service life and high wear resistance
• Compact round profile at 0.375 inches diameter fits standard locating hardware
• Low-profile design at 0.125 inches high suits tight fixture clearances

Compatibility

Designed as a standard-format replacement or addition for round-bore locating fixtures and workholding assemblies that accept 0.375-inch diameter gripper pads.

Installation Notes

Installation is typically performed by toolmakers or fixture builders using a press fit or threaded engagement depending on the host fixture design. Ensure the mounting bore is clean and dimensionally correct before seating the pad to avoid cracking the carbide body. Carbide is brittle and should not be struck directly with metal tools during installation. Follow applicable shop safety practices when handling carbide components.
