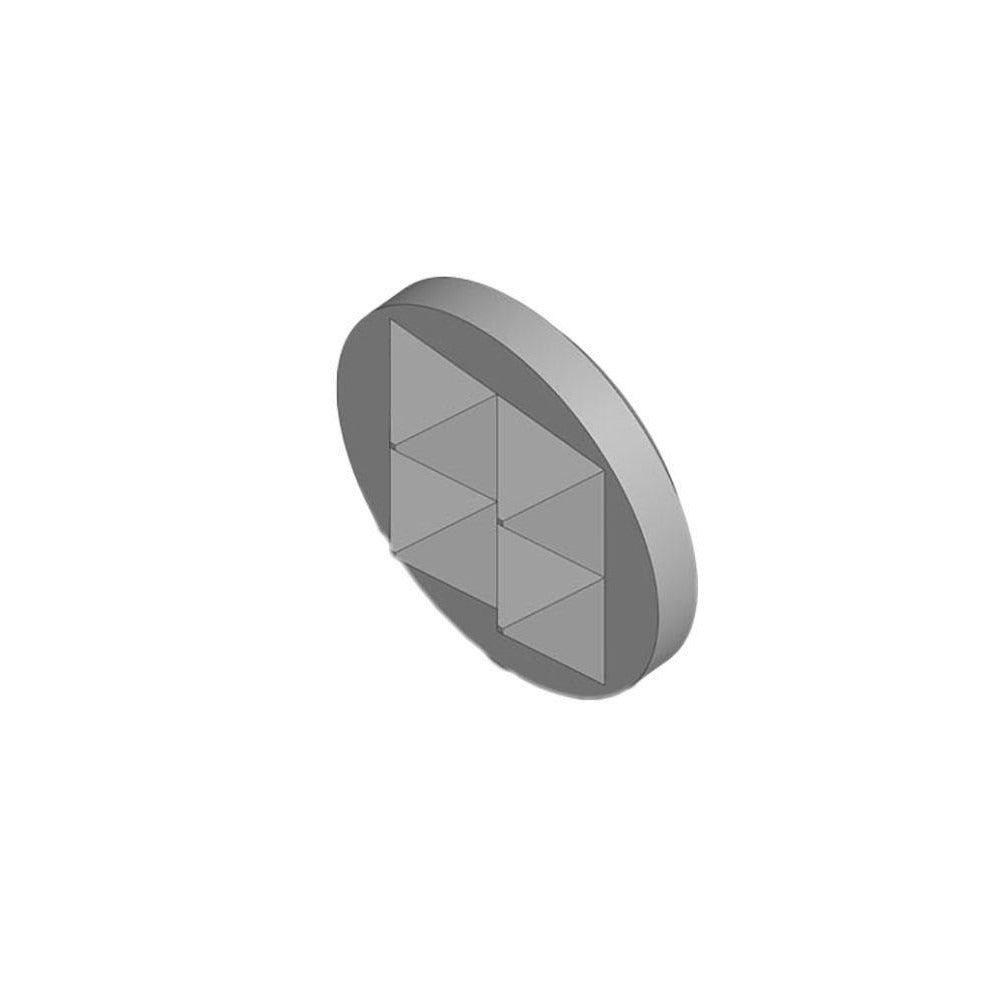

Fairlane CC-3-4 Round Positioning Gripper Pad Carbide

Product Description

The FAIRLANE CC-3-4 is a round positioning gripper pad machined from solid carbide with a 4-point tooth grade and diamond tooth pattern. At 3/8 inch in diameter and 1/8 inch in height, this compact pad is engineered to hold workpieces securely in place without slipping during machining or assembly operations. The diamond tooth pattern bites into the workpiece surface to create reliable, repeatable contact. Solid carbide construction provides hardness and wear resistance suited to demanding fixture and jig environments. Toolmakers, fixture builders, and machine shop personnel are the primary installers and users of this component.

This gripper pad is designed for use in brazed or bonded applications within jigs, fixtures, and clamps. Its small round profile and low-profile height of 1/8 inch make it well suited for tight fixture layouts where space is limited. The 4-point tooth grade offers a balance between holding force and minimal marking on the workpiece, appropriate for a range of production and prototype fixturing scenarios across general manufacturing environments.

Key Features

• Solid carbide construction for high hardness and long service life in fixture applications
• Diamond tooth pattern provides multi-directional grip on workpiece surfaces
• 4-point tooth grade balances holding force with controlled surface contact
• Round pad shape at 3/8 inch diameter fits compact fixture layouts
• Low-profile 1/8 inch height minimizes stack-up in tight assemblies
• Suitable for brazing or bonding into jigs, fixtures, and clamps

Compatibility

Designed for use with brazed or bonded installations in jigs, fixtures, and clamps across general machining and assembly fixturing applications.

Installation Notes

Installation is typically performed by toolmakers or fixture designers who braze or bond the pad into a prepared seat within the fixture body. The mounting surface and pad seat should be clean and free of debris before bonding to ensure full, even contact. Carbide is brittle and should not be subjected to impact loading or sharp thermal shock during installation. Follow the adhesive or brazing material manufacturer guidelines for cure time before putting the fixture into service.
