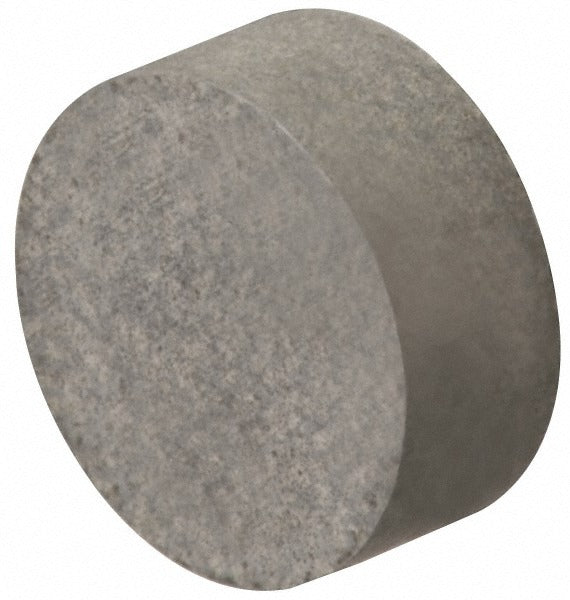

Fairlane CC-1F Round Positioning Gripper Pad Carbide

Product Description

The FAIRLANE CC-1F is a solid carbide round positioning gripper pad designed to secure workpieces in jigs, fixtures, and clamps during machining and fabrication operations. Measuring 0.25 inches in diameter and 0.125 inches high, this compact pad features a flat tooth pattern that bites into workpiece surfaces to resist movement under load. Solid carbide construction provides the hardness and wear resistance required for demanding production environments. This pad is installed by machinists and toolmakers who need reliable, repeatable workholding without damaging finished surfaces beyond the intended grip contact area.

The CC-1F is suited for use in precision jigs, fixtures, and clamping assemblies where consistent part positioning is critical. The flat tooth pattern makes it appropriate for applications requiring moderate grip force on flat workpiece surfaces. Its small form factor allows installation in tight tooling layouts where space is limited. Typical applications include production machining, inspection fixturing, and assembly tooling across metalworking and manufacturing operations.

Key Features

• Solid carbide construction for high hardness and extended service life
• Flat tooth pattern provides consistent grip on flat workpiece surfaces
• Round pad shape, 0.25 inches diameter and 0.125 inches high
• Designed for brazing or bonding into jigs, fixtures, and clamps
• Compact size suits tight tooling layouts and small fixturing assemblies

Compatibility

Designed for use with brazed or bonded installations in jigs, fixtures, and clamps requiring a round solid carbide positioning gripper pad.

Installation Notes

Installation of this gripper pad requires brazing or bonding into the host fixture or clamping component. Ensure all machinery is powered down and workholding equipment is de-energized or de-pressurized before servicing tooling assemblies. Use appropriate brazing alloys or adhesives rated for carbide substrates and follow the fixture manufacturer's recommendations for surface preparation. Handle carbide components with care to avoid chipping the cutting edges prior to installation.
