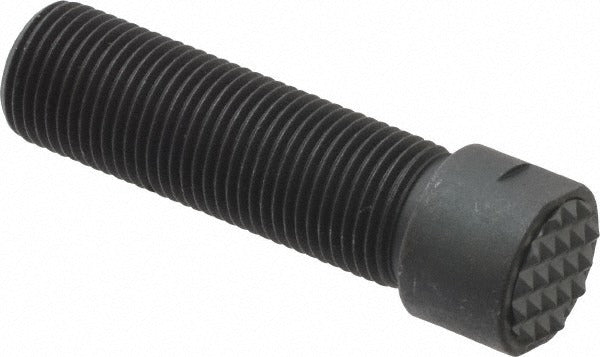

Fairlane AG-0620X2 Adjustable Positioning Gripper

Product Description

The FAIRLANE AG-0620X2 is an adjustable positioning gripper designed to locate and hold workpieces securely during machining, assembly, and fixture operations. It features a round head with a fine-grade serrated tooth pattern for positive engagement on workpiece surfaces. The gripper is carbide-tipped for durability and finished in black oxide for corrosion resistance. Key dimensions include a 5/8-inch pad diameter, a 2-inch shank length, and a 2-inch thread length with a 5/8-18 thread size. A 1/4-inch internal hex drive allows for tool adjustment without full disassembly. This part is installed by machinists, toolmakers, and fixture builders working in precision manufacturing environments.

The AG-0620X2 is suited for use in modular fixturing systems, CNC machining setups, and manual assembly fixtures where repeatable workpiece positioning is required. The adjustable design allows the gripper to accommodate varying workpiece heights. The serrated tooth pattern provides consistent grip force on metal and rigid plastic surfaces. This gripper is a fit for light to medium duty industrial holding applications in both production and job-shop environments.

Key Features

• Fine-grade serrated tooth pattern for positive, repeatable workpiece engagement
• Carbide-tipped contact surface for extended service life in demanding applications
• Black oxide finish provides corrosion resistance in shop environments
• 1/4-inch internal hex drive allows tool-assisted height adjustment
• 5/8-18 thread size compatible with standard fixturing components
• Round head design with 3/4-inch hex body for wrench installation and removal

Compatibility

Designed as an OEM-style adjustable positioning gripper for use in modular fixturing and workholding systems that accept 5/8-18 threaded gripper components.

Installation Notes

Installation is performed by machinists or toolmakers using standard hex wrenches. De-energize or lock out any associated machinery before installing or adjusting grippers in a fixture. Thread the gripper into the fixture body to the required depth and use the 1/4-inch internal hex to set the contact height before locking. Verify that the serrated teeth are making full, even contact with the workpiece surface before placing the fixture into service.
