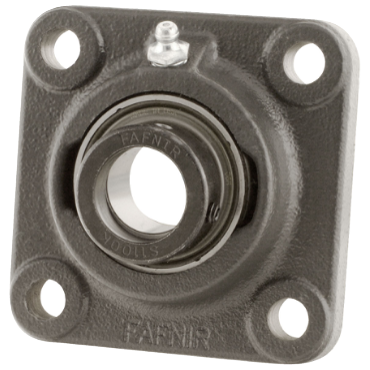

Fafnir VCJ11/2 VCJ Standard Series 4-Bolt Flange Unit

Product Description

The Fafnir VCJ standard series 4-bolt flange unit with MPN VCJ11/2 is designed for reliable performance and easy installation. This assembly is factory prelubricated to save time during setup. The four-bolt mounting simplifies installation in a variety of applications.

• 1 1/2-inch shaft diameter
• Self-locking collars enhance security
• Constructed from durable cast iron

Product Highlights

This unit is suitable for agriculture, fans, blowers, food processing, and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• MPN: VCJ11/2

Technical Specifications

• Housing Construction: 1 Piece
• Housing Length: 5 1/8 inches
• Bearing Design: Non-Expansion
• Dynamic Load Rating: 8150 lbf
• Duty: Normal-Duty
• Seal Type: Contact Seals
• Flange Thickness: 9/16 inches
• Length Through Bore: 1.7188 inches
• Bearing Type: Ball Bearing
• Lubrication: Relubricatable
• Bolt Hole Spacing: 4 inches
• Housing Material: Cast Iron
• Overall Width: 2.2188 inches
• Housing No.: T-40233
• Bolt Hole Size: 0.5156 inches
• Bearing Insert: GRA108RRB
• Mounted Unit Duty: Normal-Duty
• Housing Height: 5 1/8 inches
• Style: 4-Bolt Flange
• Inch/Metric: Inch
• Bolt Circle Dia.: 5 21/32 inches
• Flange Type: 4-Bolt Flange
• Shaft Dia.: 1.5 inches
• Locking Device: Eccentric Locking Collar
• End Type: Open End
• Housing Width: 1 1/2 inches
• Weight: 4.807 lb
• EAN or UPC: 87796059795
