Fafnir VCJ1 TKN Flange Mount Ball Bearing Unit 1 in Diameter Bore

Product Description

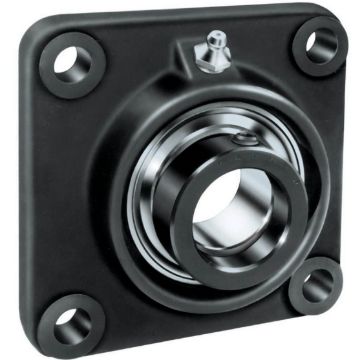

The Timken VCJ1 is a flange mount ball bearing unit designed for various industrial applications. It features a one-inch diameter bore and is suitable for mounting on straight shafts. The unit comes pre-assembled and ready for quick installation. Its sturdy construction ensures reliability even under demanding conditions.

• 1-inch diameter bore for versatile applications
• Robust flange mount designed for easy installation
• Factory pre-lubricated for immediate use

Product Highlights

This unit is ideal for use in sectors such as agriculture, food processing, and material handling.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• MPN: VCJ1
• Series: VCJ
• Bore Diameter: 1 in
• Load Capacity: 3490 lb Dynamic / 1760 lb Static
• Maximum Speed: 5440 rpm
• Overall Depth: 1.696 in
• Overall Height: 1.696 in
• Overall Length/Diameter: 3-3/4 in
• Bolt Center-to-Center Length: 2-3/4 in
• Temperature Rating: -30 to 275 deg F
• Locking Device: Eccentric
• Bearing Material: Steel
• Flange Mounting Type: 4-Bolt
• Finish: Uncoated
