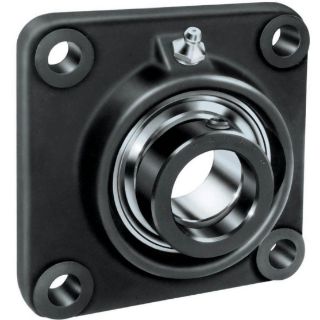

Fafnir TCJ2 3/16 TKN Power Ball Bearing Unit

Product Description

The Fafnir TCJ2 3/16 TKN is an industrial normal duty flange mount ball bearing unit by Timken. It features a two and three-sixteenths inch bore and a five and one-eighth inch bolt center-to-center length. This unit is designed for easy mounting on straight shafts utilizing a slip fit. The TCJ series is ideal for a range of industrial applications

• Designed for mounting on straight shafts
• Includes eccentric locking device for secure fit
• Factory pre-lubricated for immediate use

Product Highlights

This flange mount unit is made with a wide-inner-ring ball bearing that helps support the shaft effectively. The TCJ2 3/16 unit can handle high static and dynamic loads, making it suitable for heavy-duty applications. Its operational temperature range is from minus thirty to two hundred seventy-five degrees Fahrenheit, ensuring reliability in various environments.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: TCJ
• Bore Diameter: 2-3/16 inches
• Load Capacity: 10800 lb Dynamic / 6570 lb Static
• Maximum Speed: 500 rpm
• Overall Depth: 2.958 inches
• Locking Device: Eccentric
• Overall Height: 2.958 inches
• Bearing Material: Steel
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Flange Mounting Type: 4-Bolt
• Overall Length/Diameter: 6-3/8 inches
• Bolt Center-to-Center Length: 5-1/8 inches
