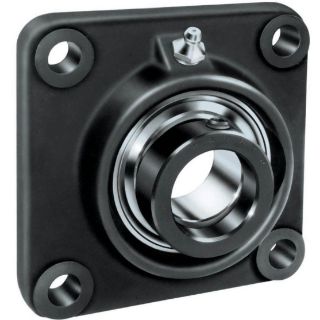

Fafnir TCJ1 3/4 TKN Flange Mount Ball Bearing Unit

Product Description

The Fafnir TCJ1 3/4 TKN Flange Mount Ball Bearing Unit is designed for various industrial applications. It features a one and three-fourth inch bore and a four bolt flange for secure mounting. The unit provides easy installation and reliable performance for different machine operations.

• Durable steel bearing material for lasting use
• Dynamic load capacity of eight thousand one hundred sixty pounds
• Temperature tolerance ranging from negative thirty to two hundred seventy-five degrees Fahrenheit

Product Highlights

This ball bearing unit is ideal for installations requiring compact and robust support.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Model: TCJ1 3/4
• Bore Diameter: 1-3/4 in
• Load Capacity: 8160 lb Dynamic / 4600 lb Static
• Maximum Speed: 500 rpm
• Overall Depth: 2.334 in
• Locking Device: Eccentric
• Overall Height: 2.334 in
• Overall Length: 5-3/8 in
• Bolt Center-to-Center Length: 4-1/8 in
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 4-Bolt
• Series: TCJ
• Finish: Uncoated
