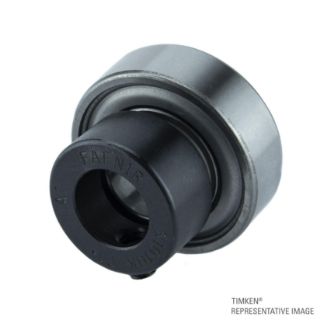

Fafnir SM1107KS TKN Ball Insert Bearing Housed Unit Standard Duty SM-S

Product Description

The Fafnir SM1107KS Ball Insert Bearing Housed Unit is designed for various industrial applications. This standard duty bearing features a one and seven sixteenth inches bore and a three point one one zero two inches outside diameter. It is suitable for mounting on straight shafts. The unique shaft guarding technology protects the shaft from damage.

• Dynamic load capacity of six thousand four hundred pounds
• Static load capacity of three thousand four hundred forty pounds
• Maximum speed of six thousand five hundred forty rpm

Product Highlights

This unit allows for a simple yet effective installation, protecting both the bearing and the shaft.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: SM-S
• Type: Standard Duty
• Bore Diameter: 1-7/16 in
• Outside Diameter: 3.1102 in
• Width: 1-31/64 in
• Closure Type: Open
• Cage Material: Steel
• Load Capacity: 6400 lb Dynamic / 3440 lb Static
• Maximum Speed: 6540 rpm
• Number of Rows: 1
• Country of Origin: US
