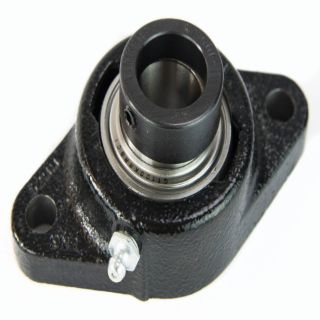

Fafnir SCJT17/16 Flange Mount Ball Bearing Unit

Product Description

The Timken Fafnir SCJT17/16 is a flange mount ball bearing unit designed for various industrial applications. This unit has a one and seven-sixteenths inch bore and includes a two-bolt flange mounting for secure installation.

• Dynamic load capacity of six thousand four hundred pounds
• Maximum speed rating of three thousand nine hundred thirty RPM
• Temperature rating of minus thirty to two hundred seventy-five degrees Fahrenheit

Product Highlights

This bearing unit offers robust performance and reliable operation for numerous applications such as agriculture and food processing.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: SCJT
• Bore Diameter: 1-7/16 in
• Dynamic Load Capacity: 6400 lb
• Static Load Capacity: 3440 lb
• Maximum Speed: 3930 RPM
• Overall Length: 6-1/8 in
• Bolt Center-to-Center Length: 5-1/8 in
• Overall Depth: 1-1/2 in
• Overall Height: 1.504 in
• Locking Device: Set Screw
• Bearing Material: Steel
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 2-Bolt
• Finish: Uncoated
