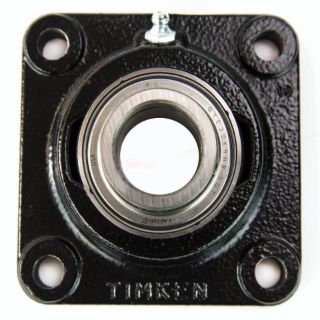

Fafnir SCJ2S TKN Flange Mount Ball Bearing Unit Normal Duty Standard

Product Description

The Fafnir SCJ2S TKN is a flange mount ball bearing unit with a two inch bore designed for standard duty applications. It features a four-bolt flange mount and is built to provide support and stability in various industrial settings.

• Designed for straight shaft mounting with a slip fit.
• Assembled units include GYA-RRB bearings with set screw locking.
• Ideal for agriculture, food processing, fans, and blowers.

Product Highlights

This bearing unit combines durability with ease of installation. The set screw locking device ensures a secure fit.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: SCJ
• Bore Diameter: 2 inches
• Overall Depth: 1-13/16 inches
• Overall Height: 1.831 inches
• Overall Length/Diameter: 5-5/8 inches
• Bolt Center-to-Center Length: 4-3/8 inches
• Load Capacity: 8740 lb dynamic / 5210 lb static
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Locking Device: Set screw
• Bearing Material: Steel
• Flange Mounting Type: 4-bolt
