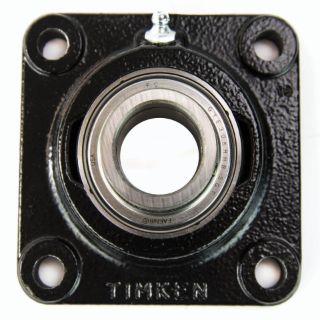

Fafnir SCJ2 TKN Normal Duty Standard Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJ2 is a flange mount ball bearing unit designed for reliable performance in various industrial applications. This unit features a two-inch bore and is ideal for use in sectors like agriculture, food processing, fans, blowers, and conveyors.

• Normal duty design with a robust steel bearing.
• Set screw locking device for secure mounting.
• Pre-lubricated for convenience and ease of installation.

Product Highlights

High load capacity and durable construction make this bearing suitable for demanding environments.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• MPN: SCJ2
• Bore Diameter: 2 inches
• Load Capacity: 10800 lb Dynamic / 6570 lb Static
• Maximum Speed: 2710 rpm
• Overall Depth: 1-57/64 inches
• Locking Device: Set Screw
• Overall Height: 2.034 inches
• Bearing Material: Steel
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Flange Mounting Type: 4-Bolt
• Overall Length/Diameter: 6-3/8 inches
• Bolt Center-to-Center Length: 5-1/8 inches
