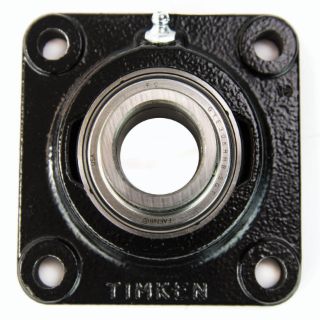

Fafnir SCJ 3/4 TKN Flange Mount Ball Bearing Unit

Product Description

The Fafnir SCJ 3/4 is a flange mount ball bearing unit from Timken, featuring a bore diameter of three-fourths of an inch. Designed for various industrial applications, this unit ensures a secure fit and reliable performance.

• Pre-lubricated for easy installation
• Constructed with a steel bearing material
• Rated for temperatures from minus thirty to two hundred seventy-five degrees Fahrenheit

Product Highlights

This ball bearing unit is ideal for applications such as agriculture, food processing, fans, blowers, and conveyors.

Product Information

Standard Information

• Manufacturer: Timken
• Brand: Fafnir

Technical Specifications

• Model Number: SCJ 3/4
• Bore Diameter: 3/4 in
• Overall Length/Diameter: 3-3/8 in
• Bolt Center-to-Center Length: 2-1/2 in
• Overall Depth: 1-1/8 in
• Overall Height: 1.189 in
• Dynamic Load Capacity: 3190 lb
• Static Load Capacity: 1480 lb
• Maximum Speed: 6270 rpm
• Temperature Rating: -30 to 275 deg F
• Locking Device: Set Screw
• Flange Mounting Type: 4-Bolt
• Finish: Uncoated
