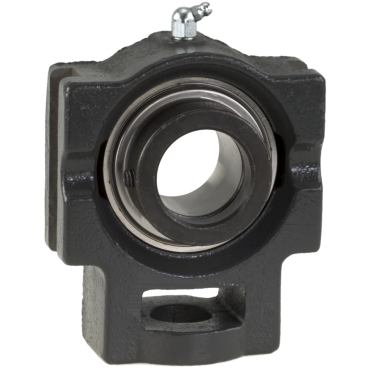

Fafnir RTU115/16NT Ball Bearing Take-Up Unit

Product Description

The Fafnir RTU115/16NT is a reliable ball bearing take-up unit designed for applications requiring shaft adjustment and belt tensioning. This unit features a wide slot to accommodate varied setups, suitable for conveyor systems and similar machinery. It incorporates self-aligning type B wide inner ring ball bearings, ensuring stable performance and durability.

• Includes Nickel Plated construction
• Features contact seals for effective protection
• Relubricatable for extended service life

Product Highlights

Ideal for adjustable shafts and conveyor applications, this compact unit is factory lubricated and easy to maintain with a grease fitting for additional lubrication.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RTU115/16NT

Technical Specifications

• Locking Device: Setscrew Locking Collar
• Slot Width: 0.6875 in
• Overall Width: 2 25/32 in
• Housing Material: Nickel Plated
• Shank Height: 3 1/4 in
• Lubrication: Relubricatable
• Take-Up Types: Wide Slot
• Between Frame Width: 3 31/32 in
• Seal Type: Contact Seals
• Housing Width: 2 9/16 in
• Type: Ball Bearing
• Shaft Diameter: 1.9375 in
• Overall Height: 4.75 in
• Measurement Type: Inch
• Bearing Design: Non-Expansion
• Slot Length: 3 3/8 in
• Weight: 7.896 lb
• EAN or UPC: 87796156708
