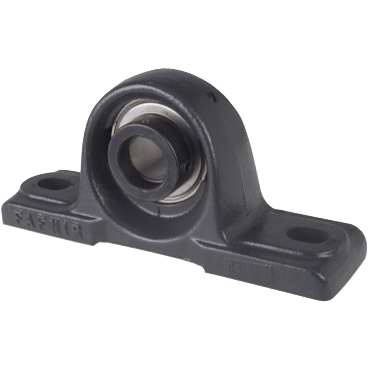

Fafnir RSAO27/16 RSAO Series Cast Iron 2-Bolt Ball Bearing Pillow Block

Product Description

The Fafnir RSAO27/16 is a cast iron two-bolt ball bearing pillow block designed for heavy-duty applications. This unit features GN-KRRB wide inner ring ball bearings and is built to handle substantial loads relative to the shaft diameter. It is ready for immediate use and is prelubricated, making it suitable for various operating environments.

• Constructed from durable cast iron
• Features relubricatable bearings for extended service life
• Self-locking collar for secure mounting

Product Highlights

This pillow block is ideal for installations with heavy shock loads and is ready for use in wet or dirty conditions.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RSAO27/16

Technical Specifications

• Shaft Diameter: 2.4375 in
• Base Height: 1.5 in
• Base Length: 13.75 in
• Base Width: 4 in
• Bolt Holes: 2
• Collar Number: SN207K
• Weight: 28.25 lb
• Housing Material: Cast Iron
• Insert Type: Steel Insert
• Locking Device: Eccentric Locking Collar
