FAFNIR RCJT1PT GAS VALVES

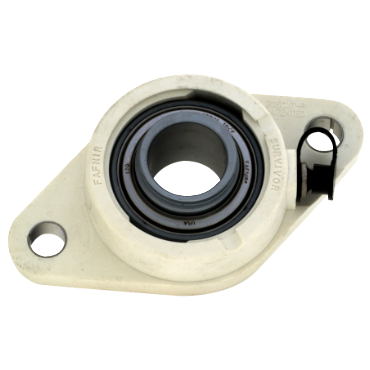

Fafnir RCJT1PT Survivor PT Series Polymer 2-Bolt Flange Unit

Brand: FAFNIR
SKU: RCJT1PT
Availability: Out Of Stock
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Fafnir RCJT1PT is a Survivor PT series polymer 2-bolt flange unit designed for harsh environments. This unit is made to handle a variety of corrosive chemicals commonly found in the food and beverage industries. It provides stability under load and operates at continuous temperatures up to two hundred fifty degrees Fahrenheit, with short bursts up to three hundred fifty degrees Fahrenheit.

  • 1 shaft with contact seals
  • Regreasable for extended use
  • Dimensionally stable design

Product Highlights

This flange unit ensures reliable performance in demanding applications.

Product Information

Standard Information

  • Brand: Fafnir
  • MPN: RCJT1PT
Technical Specifications
Flange Type
2-Bolt Flange
Mounted Unit Duty
Corrosion Resistant-Duty
Duty
Normal-Duty
Bearing Type
Ball Bearing
Housing Width
1 1/8 inches
Style
2-Bolt Flange
Flange Thickness
7/16 inches
End Type
Open End
Housing No.
T-40221
Overall Width
1.806 inches
Bearing Insert
G1100KRRB TDCF
Bolt Hole Spacing
3.906 inches
Lubrication
Relubricatable
Housing Material
Polymer
Bearing Design
Non-Expansion
Bolt Hole Size
0.453 inches
Inch/Metric
Inch
Housing Length
4 7/8 inches
Locking Device
Eccentric Locking Collar
Seal Type
Contact Seals
Outer Ring Size
205
Housing Height
2 3/4 inches
Housing Construction
1 Piece
Shaft Diameter
1 inch
Weight
0.816 lb
EAN or UPC
87796180291
