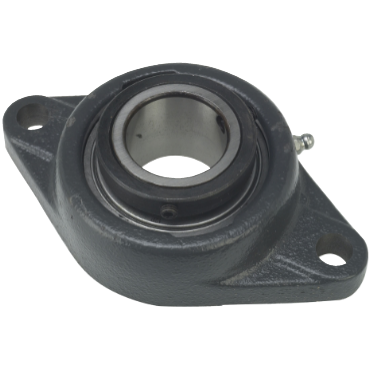

Fafnir RCJT17/16NT | 2-Bolt Flange Unit | 1.4375 Shaft

Product Description

The Fafnir RCJT17/16NT is a two-bolt flange bearing unit designed for demanding applications in food handling and corrosive environments. This unit uses Fafnir's TDC coated ball bearings and features an electroless nickel-plated housing for enhanced durability.

• 1.4375 inches shaft diameter
• Relubricatable design
• Eccentric locking collar for secure mounting

Product Highlights

Explore a robust design, suitable for harsh conditions, ensuring long-lasting performance in food and beverage applications.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RCJT17/16NT

Technical Specifications

• Flange Type: 2-Bolt Flange
• Bearing Design: Non-Expansion
• Locking Device: Eccentric Locking Collar
• Flange Thickness: 0.4688 inches
• Overall Width: 2.0938 inches
• Duty: Normal-Duty
• Style: 2-Bolt Flange
• Lubrication: Relubricatable
• Shaft Diameter: 1.4375 inches
• Bearing Type: Ball Bearing
• Inch/Metric: Inch
• Bolt Hole Size: 0.5156 inches
• Housing Width: 1.3438 inches
• Bolt Hole Spacing: 5 1/8 inches
• Bolt Circle Diameter: 5 1/8 inches
• Mounted Unit Duty: Normal-Duty
• Seal Type: Contact Seals
• Housing Height: 3 5/8 inches
• Housing Length: 6 1/8 inches
• End Type: Open End
• Housing Construction: 1 Piece
• Housing Material: Nickel Plated
• Weight: 2.92 lbs
• EAN or UPC: 87796151161
