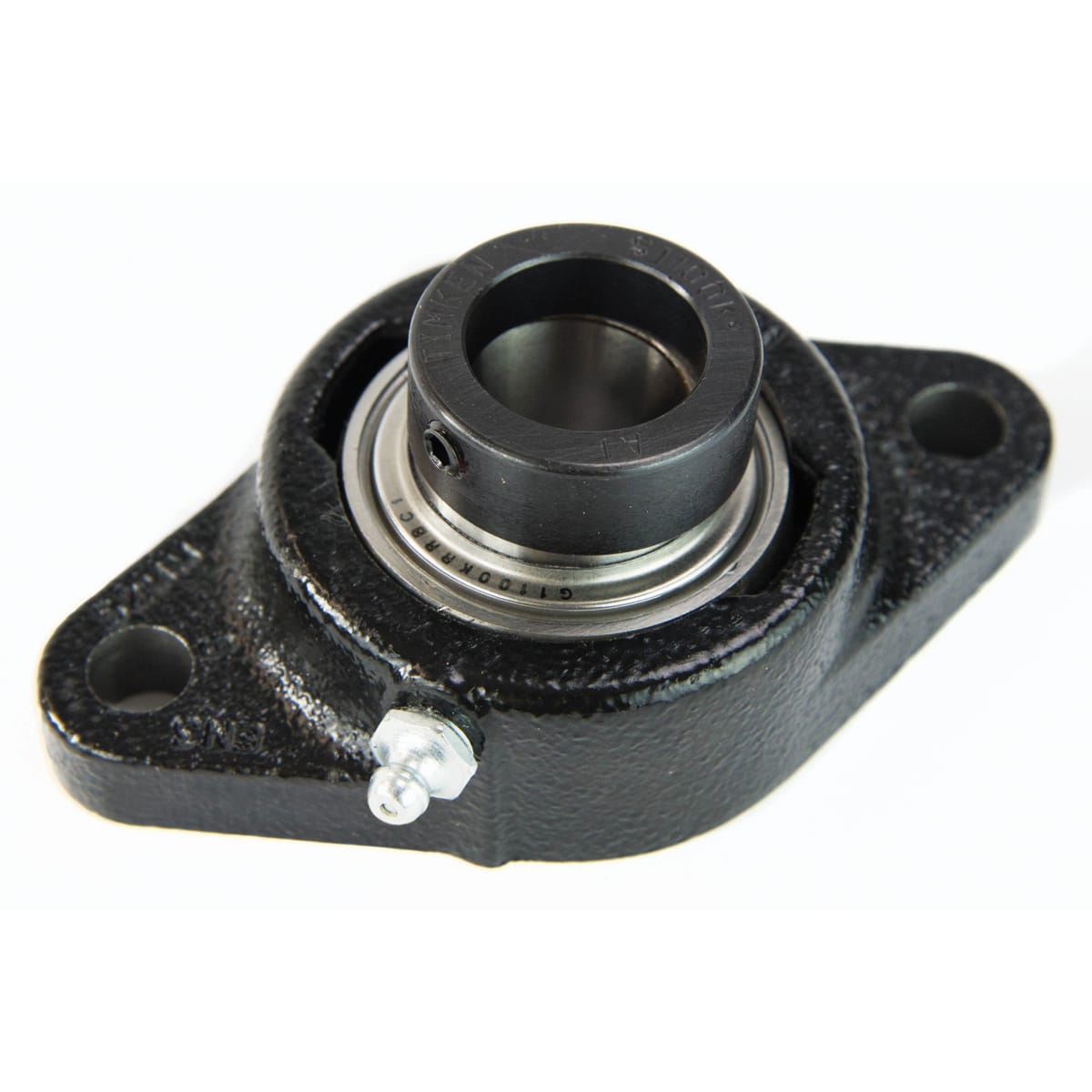

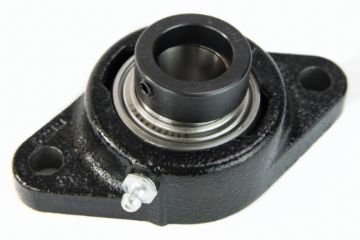

Fafnir RCJT13/16 Normal Duty Flange Mount Ball Bearing Unit

Product Description

Fafnir RCJT13/16 is a flange mount ball bearing unit designed for normal duty applications. This unit features a one and three-sixteenth inch diameter bore, making it suitable for a variety of industrial tasks.

• Wide-inner-ring design for shaft support.
• Factory pre-lubricated for immediate use.
• Equipped with an eccentric locking device for secure mounting.

Product Highlights

This ball bearing unit is ideal for use in agriculture, food processing, and conveyor systems.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RCJT13/16

Technical Specifications

• Bore Diameter: 1-3/16 in
• Dynamic Load Capacity: 7890 lb
• Static Load Capacity: 5210 lb
• Maximum Speed: 4570 rpm
• Overall Length: 5-9/16 in
• Overall Height: 1.99 in
• Overall Depth: 1.99 in
• Temperature Rating: -30 to 275 deg F
