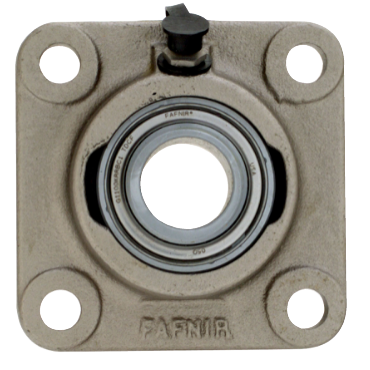

Fafnir RCJ27/16NT Survivor NT Series Nickel Plated 4-Bolt Flange Unit

Product Description

Fafnir's RCJ27/16NT is a Nickel Plated 4-Bolt Flange Unit designed for demanding environments. This flange unit is built to withstand tough conditions in the food handling and highly corrosive industries. The Survivor NT series combines a robust design with advanced materials to ensure reliability and durability.

• Designed for food and beverage industries
• Features contact seals for effective protection
• Equipped with a re-lubricatable design

Product Highlights

Fafnir's Survivor NT series is suitable for high-wear applications and offers excellent corrosion resistance due to its nickel plating.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RCJ27/16NT

Technical Specifications

• Bolt Circle Diameter: 7.955 inches
• Bearing Design: Non-Expansion
• Housing Height: 6 7/8 inches
• Overall Width: 3 3/16 inches
• Bolt Hole Spacing: 5 5/8 inches
• Bearing Insert: G1207KRRB TDCF
• Length Through Bore: 2.4375 inches
• Duty: Normal-Duty
• Lubrication: Relubricatable
• Seal Type: Contact Seals
• Inch/Metric: Inch
• Flange Thickness: 0.6875 inches
• Bearing Type: Ball Bearing
• End Type: Open End
• Housing Construction: 1 Piece
• Locking Device: Eccentric Locking Collar
• Housing Width: 1 15/16 inches
• Bolt Hole Size: 0.6719 inches
• Flange Type: 4-Bolt Flange
• Housing Material: Nickel Plated
• Mounted Unit Duty: Normal-Duty
• Shaft Diameter: 2.4375 inches
• Housing Length: 6 7/8 inches
• Style: 4-Bolt Flange
• Weight: 10.37 lb
• EAN or UPC: 87796157040
