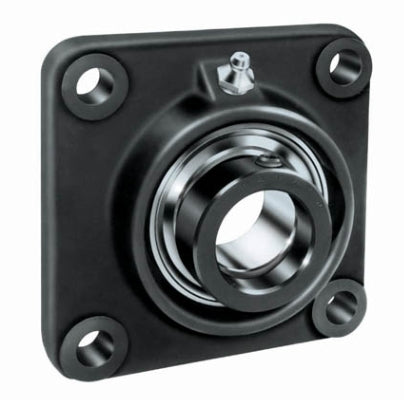

Fafnir RCJ13/16 RCJ Industrial Series 4-Bolt Flange Unit

Product Description

The Fafnir RCJ13/16 is a 4-bolt flange unit designed for ease of installation and use. It features a wide inner ring bearing, which provides self-alignment capabilities to accommodate shaft misalignment. These units are ready for mounting with bolts through the flange. They come factory prelubricated and include a grease fitting for maintenance if needed. Each unit is equipped with self-locking collars for secure operation.

• 4-bolt flange for secure mounting
• Self-aligning wide inner ring bearing
• Contact seals for effective lubrication retention

Product Highlights

This flange unit supports various applications, including agriculture, fans and blowers, food processing, and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RCJ13/16

Technical Specifications

• Style: 4-Bolt Flange
• Flange Type: 4-Bolt Flange
• Bolt Hole Spacing: 3 1/4 in
• Housing Material: Cast Iron
• Overall Width: 1.99 in
• Locking Device: Eccentric Locking Collar
• Dynamic Load Rating: 4800 lbf
• Bolt Hole Size: 0.453 in
• Shaft Diameter: 1.1875 in
• Seal Type: Contact Seals
• Length Through Bore: 1.4375 in
• Housing Length: 4 1/4 in
• Housing Construction: 1 Piece
• Bearing Design: Non-Expansion
• Bearing Insert: G1103KRRB
• Lubrication: Relubricatable
• Housing Width: 1.281 in
• Flange Thickness: 0.531 in
• Housing Height: 4 1/4 in
• Weight: 2.58 lb
• Universal Product Code: 87796058071
