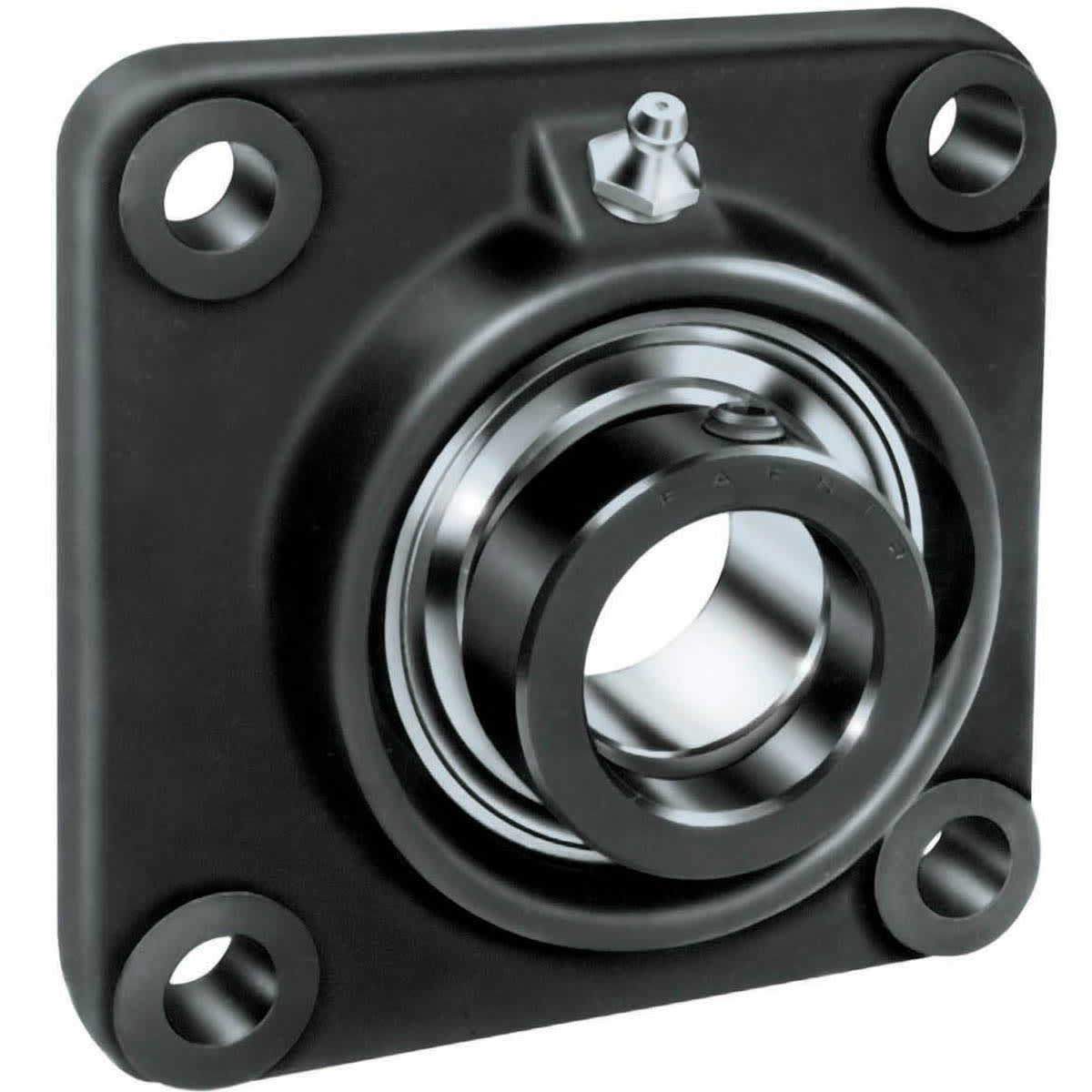

Fafnir RCJ115/16 Flange Mount Ball Bearing Unit

Product Description

The Timken Fafnir RCJ115/16 is a flange mount ball bearing unit designed for industrial normal duty applications. This product features a one and fifteen-sixteenths inch bore and a four-bolt flange mounting system for secure installation.

• Manufactured by Timken for reliability.
• Dynamic load capacity of 8740 pounds.
• Temperature range from minus thirty to two hundred seventy-five degrees Fahrenheit.

Product Highlights

This ball bearing unit combines quality materials with innovative engineering for efficient operation. The wide inner ring provides extra shaft support and self-aligning features help accommodate misalignment.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RCJ115/16

Technical Specifications

• Type: Industrial Normal Duty
• Bore Diameter: 1-15/16 inches
• Overall Length: 5-5/8 inches
• Overall Height: 2.615 inches
• Dynamic Load Capacity: 8740 pounds
• Static Load Capacity: 5210 pounds
• Maximum Speed: 3000 rpm
• Locking Device: Eccentric
• Finish: Uncoated
• Overall Depth: 2.615 inches
• Temperature Rating: -30 to 275 degrees Fahrenheit
• Bolt Center-to-Center Length: 4-3/8 inches
