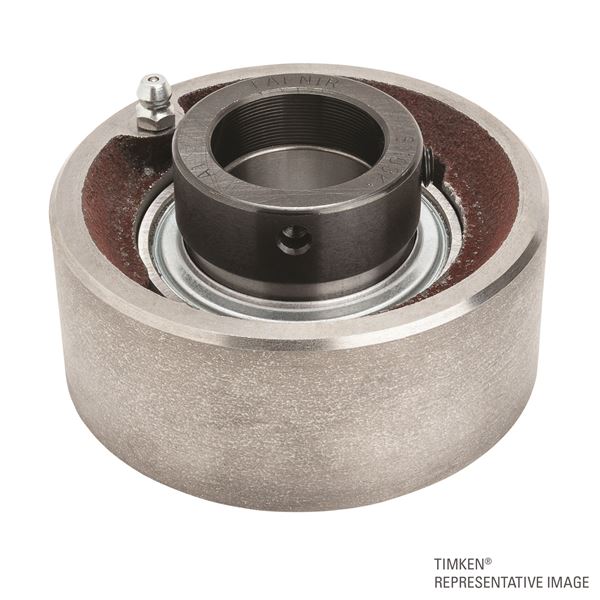

Fafnir RC17/16 Ball Bearing Cartridge Unit

Product Description

The Fafnir RC17/16 is a ball bearing cartridge unit designed for effective mounting in straight bore housings. This cartridge features a wide inner ring bearing that includes a self-locking collar and a spherical outer diameter. These elements work together to ensure proper self-alignment during operation.

• Easy installation in straight bore housings
• Equipped with G-KRRB (R-Seal) wide inner ring ball bearing
• Constructed with durable cast iron housing for longevity

Product Highlights

This cartridge unit is suitable for various applications, including HVAC systems, machinery, and conveyor systems.

Product Information

Standard Information

• Brand: Fafnir
• MPN: RC17/16

Technical Specifications

• Bearing Insert: G1107KRRB
• Lubrication: Relubricatable
• Housing Material: Cast Iron
• Seal Type: Contact Seals
• Inch/Metric: Inch
• Locking Device: Eccentric Locking Collar
• Length Through Bore: 1.48438 inches
• Dynamic Load Rating: 6400 lbf
• Outside Diameter: 3.875 inches
• Overall Width: 2.0625 inches
• Shaft Diameter: 1.4375 inches
• Weight: 3.094 lb
• EAN or UPC: 87796059214
