Fafnir RC111/16 Ball Bearing Cartridge Unit

Product Description

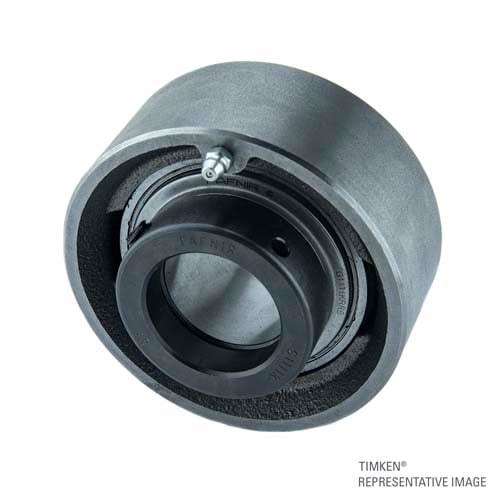

The Fafnir RC111/16 is a ball bearing cartridge unit designed for easy mounting in straight bore housings. This unit features a wide inner ring bearing with a self-locking collar and a spherical outer diameter that fits into a corresponding spherical seat, allowing for self-alignment. It is ideal for various industrial applications where durability and reliability are essential.

• Compatible with standard-duty applications
• Constructed from cast iron for durability
• Equipped with contact seals for enhanced protection

Product Highlights

The Fafnir RC111/16 is designed for seamless installation and efficient operation in various environments.

Product Information

Standard Information

• Brand: Fafnir
• Part Number: RC111/16

Technical Specifications

• Collar No.: S1111K
• Outside Diameter: 4.375 inches
• Shaft Diameter: 1.6875 inches
• Housing Material: Cast Iron
• Dynamic Load Rating: 8150 lbf
• Type: Ball Bearing
• Seal Type: Contact Seals
• Overall Width: 2.25 inches
• Housing Width: 1.75 inches
• Lubrication: Relubricatable
• Locking Device: Eccentric Locking Collar
• Length Through Bore: 1.6875 inches
• Weight: 4.43 lb
