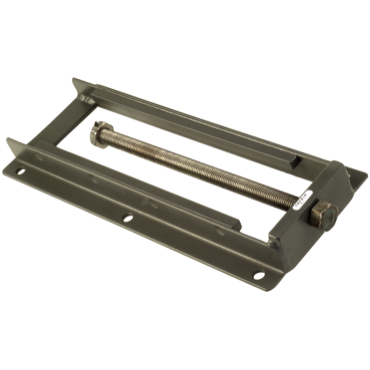

Fafnir NLTU5 Side Mounted Take-Up Frame

Product Description

The Fafnir NLTU5 is a side mounted take-up frame designed for efficient belt drive systems. This frame has a travel of eleven and three-quarters inches, which allows for adaptability within various installations. The frame measures nineteen and three-quarters inches in length, eight and thirteen-sixteenths inches in width, and two and a quarter inches in height, making it suitable for various applications.

• Travel: 11 3/4 inches
• Frame Length: 19 3/4 inches
• Base Width: 8 13/16 inches

Product Highlights

This take-up frame helps to maintain proper tension in applications requiring adjustable belt lengths. Its construction ensures longevity in demanding environments.

Product Information

Standard Information

• Brand: Fafnir
• MPN: NLTU5

Technical Specifications

• Travel: 11 3/4 inches
• Weight: 15.648 pounds
• Base Width: 8 13/16 inches
• Frame Length: 19 3/4 inches
• Overall Height: 2.25 inches
• Flange Thickness: 3/16 inches
• Bolt Hole Spacing - Width: 7.3125 inches
• Bolt Hole Spacing - Length: 8 3/4 inches
• EAN or UPC: 87796062467
