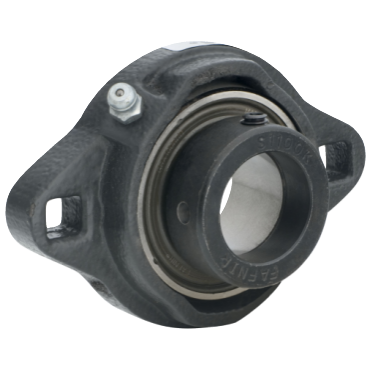

Fafnir GVFTD1 GVFTD Series 2-Bolt Flange Unit Power Each

Product Description

The Fafnir GVFTD1 is a GVFTD Series 2-Bolt Flange Unit designed for a range of industrial applications. It features a shaft diameter of one inch and a bolt hole spacing of three inches. This flange unit is suitable for various uses including agriculture, food processing, and conveyor systems.

• Flange Type: 2-Bolt
• Regreasable design with contact seals
• Constructed with durable cast iron material

Product Highlights

This product provides reliable support and stability within machinery, ensuring smooth operation across different sectors.

Product Information

Standard Information

• Brand: Fafnir
• MPN: GVFTD1

Technical Specifications

• Duty: Normal-Duty
• Style: 2-Bolt Flange
• Bearing Design: Non-Expansion
• Housing Material: Cast Iron
• Housing Length: 3 3/4 inches
• Bolt Hole Size: 0.3438 inches
• Shaft Diameter: 1 inch
• Bolt Hole Spacing: 3 inches
• Housing Width: 0.7813 inches
• Bearing Insert: GRA100RRB
• Flange Thickness: 0.4219 inches
• Seal Type: Contact Seals
• Overall Width: 1.3438 inches
• Weight: 0.816 LB
• EAN or UPC: 87796057180
