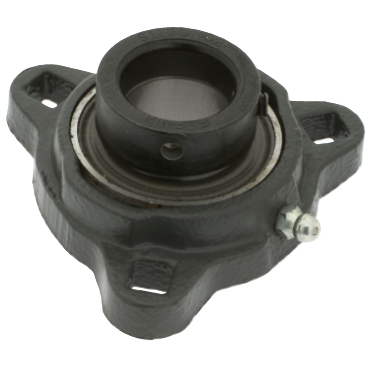

Fafnir GVFD13/16 GVFD Series 3-Bolt Flange Unit

Product Description

The Fafnir GVFD13/16 is a GVFD Series 3-Bolt Flange Unit designed for medium-duty applications. This unit features malleable iron construction that offers excellent support and self-alignment. It is compatible with the pressed steel Flangette Unit of the same size, making it versatile for different setups.

• 1 3/16 inch shaft diameter
• 3 9/16 inch bolt circle diameter
• Equipped with contact seals

Product Highlights

This flange unit is essential in various applications including agriculture, fans, blowers, food processing, and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• MPN: GVFD13/16

Technical Specifications

• Seal Type: Contact Seals
• End Type: Open End
• Housing Length: 4 7/16 inches
• Style: 3-Bolt Flange
• Inch/Metric: Inch
• Bolt Circle Diameter: 3 9/16 inches
• Length Through Bore: 1.40625 inches
• Housing Construction: 1 Piece
• Shaft Diameter: 1.1875 inches
• Duty: Normal-Duty
• Bearing Type: Ball Bearing
• Bearing Design: Non-Expansion
• Weight: 1.34 LB
