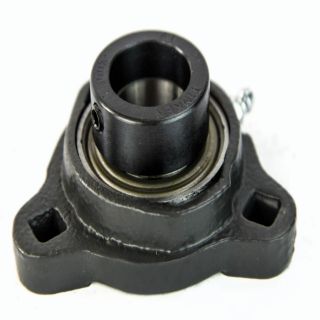

Fafnir GRFD1 TKN Power Normal Duty Flange Mount Ball Bearing Unit

Product Description

The Fafnir brand offers the GRFD1 TKN, a flange mount ball bearing unit designed for a variety of industrial applications. This unit features a one-inch diameter bore and a three-inch center-to-center bolt length.

• Malleable-iron flange cartridges provide self-alignment and support.
• Compatible with temperatures from minus thirty to two hundred seventy-five degrees Fahrenheit.
• Dynamic load capacity of three thousand four hundred ninety pounds.

Product Highlights

The GRFD1 TKN is suitable for agriculture, food processing, fans, blowers, and conveyors.

Product Information

Standard Information

• Brand: Fafnir
• Manufacturer: Timken

Technical Specifications

• Series: GRFD
• Bore Diameter: 1 in
• Load Capacity: 3490 lb Dynamic / 1760 lb Static
• Maximum Speed: 5440 rpm
• Overall Length/Diameter: 3-3/4 in
• Bolt Center-to-Center Length: 3 in
• Overall Depth: 1-1/16 in
• Overall Height: 1.481 in
• Locking Device: Eccentric
• Bearing Material: Steel
• Temperature Rating: -30 to 275 deg F
• Flange Mounting Type: 3-Bolt
• Finish: Uncoated
