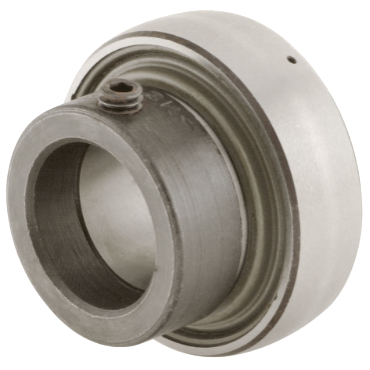

Fafnir G1203KPPB4 Ball Bearing Insert Inch Bore

Product Description

The Fafnir G1203KPPB4 is a ball bearing insert designed for efficient operation in demanding conditions. This bearing insert integrates a contact seal and is built with a steel structure, making it durable and reliable in various applications.

• Dimensionally interchangeable with KRRB bearings.
• Provides effective protection against contamination.
• Equipped with a self-locking collar for secure installation.

Product Highlights

This ball bearing insert excels in environments where moisture and debris are concerns.

Product Information

Standard Information

• Brand: Fafnir
• Part Number: G1203KPPB4

Technical Specifications

• Seal Type: Contact Seals
• I.D.: 2.1875 in
• Dynamic Load Rating: 10800 lbf
• Overall Width: 2 3/16 in
• Bearing Design: Non-Expansion
• Static Load Rating [Max]: 5600 lbf
• Static Capacity: 5600 lbf
• O.D.: 100 mm
• Rolling Element: Ball Bearing
• Duty: Standard-Duty
• Lubrication: Relubricatable
• Enclosure: Double Sealed
• Outer Ring Width: 24 mm
• Material: Steel
• Bore Type: Round Bore
• Bearing Type: Ball Bearing
• Locking Device: Eccentric Locking Collar
• Length Through Bore: 2.1875 in
• Weight: 3.17 LB
• EAN or UPC: 87796055995
