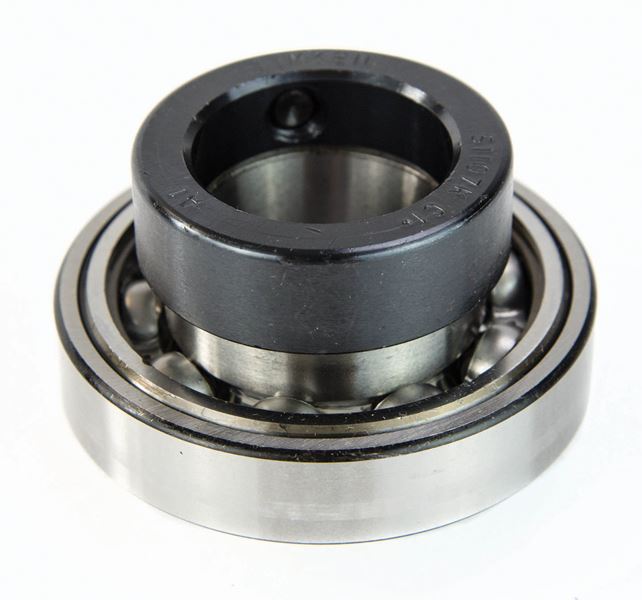

Fafnir G1115KPPB3 Ball Bearing Insert

Product Description

The Fafnir G1115KPPB3 is a ball bearing insert designed for use in various applications that require reliable performance. This bearing features a one-inch and fifteen-sixteenths inner diameter and is made from durable steel. Its design allows for easy installation and replacement in standard housings.

• 1 15/16 ID x 90 mm OD x 23 mm outer ring width
• Double sealed for protection against contaminants
• Regreasable for extended service life

Product Highlights

This bearing insert is suitable for standard-duty applications where reliability and longevity are essential. Its eccentric locking collar provides strong retention, making it ideal for environments prone to moisture and pollution.

Product Information

Standard Information

• Brand: Fafnir
• MPN: G1115KPPB3

Technical Specifications

• Duty: Standard-Duty
• Bore Type: Round Bore
• Rolling Element: Ball Bearing
• Static Capacity: 4500 lbf
• Dynamic Load Rating: 8800 lbf
• Enclosure: Double Sealed
• Material: Steel
• Inner Diameter: 1.9375 in
• Outer Diameter: 90 mm
• Length Through Bore: 1.9375 in
• Weight: 2.34 lb
• Seal Type: Contact Seals
• Locking Device: Eccentric Locking Collar
