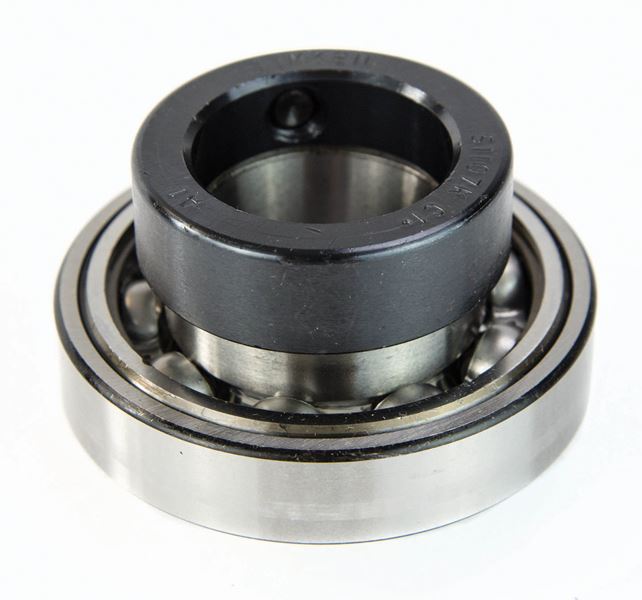

Fafnir 1207KRRB KRRB Industrial Series Wide Inner Ring Ball Bearing

Product Description

The Fafnir 1207KRRB is a KRRB Industrial Series wide inner ring ball bearing designed for harsh environments. This product is particularly useful in applications exposed to dirt and moisture. Its wide design offers enhanced support and extended grease holding capacity.

• Double sealed to protect against contaminants
• Eccentric locking collar for secure mounting
• Non-relubricatable feature to simplify maintenance

Product Highlights

This bearing is optimized for standard-duty applications and provides effective sealing against dust and dirt.

Product Information

Standard Information

• Brand: Fafnir
• Part Number: 101019580

Technical Specifications

• Seal Type: Contact Seals
• Bearing Design: Non-Expansion
• Dynamic Load Rating: 13200 lbf
• Outer Ring Width: 22 mm
• Locking Device: Eccentric Locking Collar
• Length Through Bore: 2.4375 in
• O.D.: 110 mm
• Material: Steel
• Duty: Standard-Duty
• Bearing Type: Ball Bearing
• Bore Type: Round Bore
• Lubrication: Non-Relubricatable
• Enclosure: Double Sealed
• Static Load Rating [Max]: 6950 lbf
• Overall Width: 2 7/16 in
• Static Capacity: 6950 lbf
• I.D.: 2.4375 in
• Inch/Metric: Inch Bore
• Rolling Element: Ball Bearing
• Weight: 3.518 LB
• EAN or UPC: 87796056084
