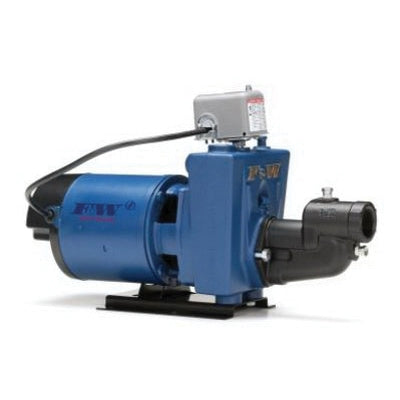

F&W CPJ05SB Jet Pump with Bolt-on Ejector 1/2 hp 115 VAC

Product Description

The F&W CPJ05SB is a jet pump designed for shallow wells. It operates on 115 volts with a half horsepower motor, achieving speeds of three thousand four hundred fifty RPM. This model can deliver up to one thousand eight hundred gallons per hour, making it suitable for residential water supply.

• Includes a bolt-on ejector for improved performance
• Manufactured by Flint & Walling
• UL 778 and CSA certified for safety

Product Highlights

This pump offers a reliable solution for shallow well applications. Its design supports easy servicing and parts interchangeability, reducing downtime.

Product Information

Standard Information

• Brand: F&W
• Manufacturer: Flint & Walling

Technical Specifications

• HP Rating: 1/2 hp
• Flow Rate: 1800 gph
• Voltage Rating: 115 VAC
• Amperage Rating: 13 A
• Frequency Rating: 60 Hz
• Maximum Feet of Head: 25 ft
• Pressure Rating: 30 - 50 psi Discharge, 60 psi Maximum
• Connection Size: 1-1/4 in Suction x 3/4 in Discharge
• Bearing Type: Ball
• Material: Gray Iron
• Series: CPJ
• Type: Shallow Well
• Phase: 1 ph
• RPM: 3450 rpm
