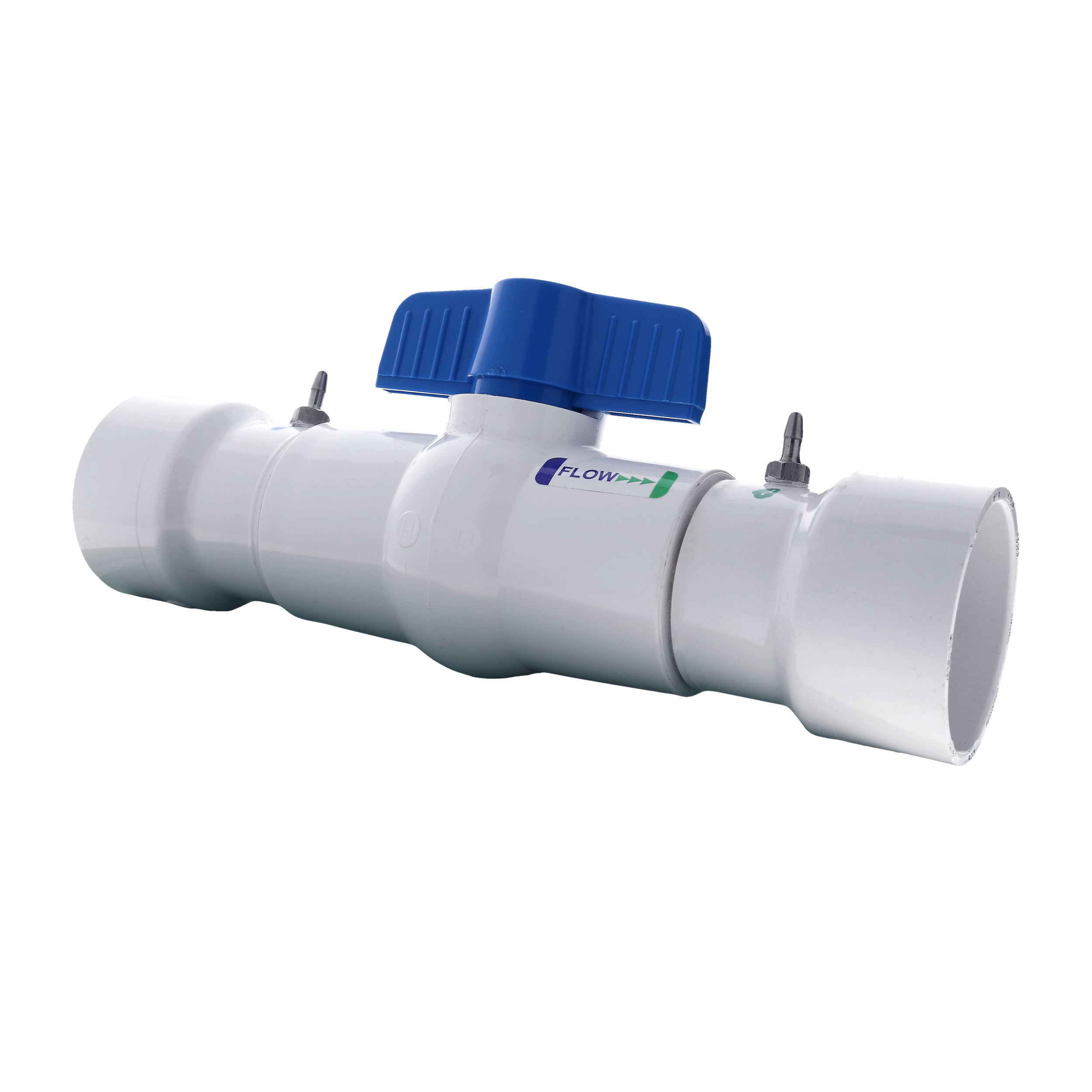

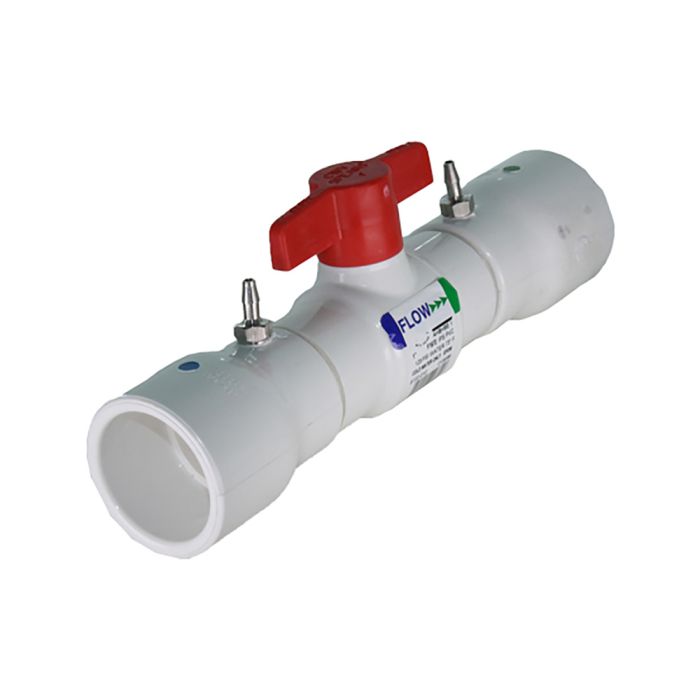

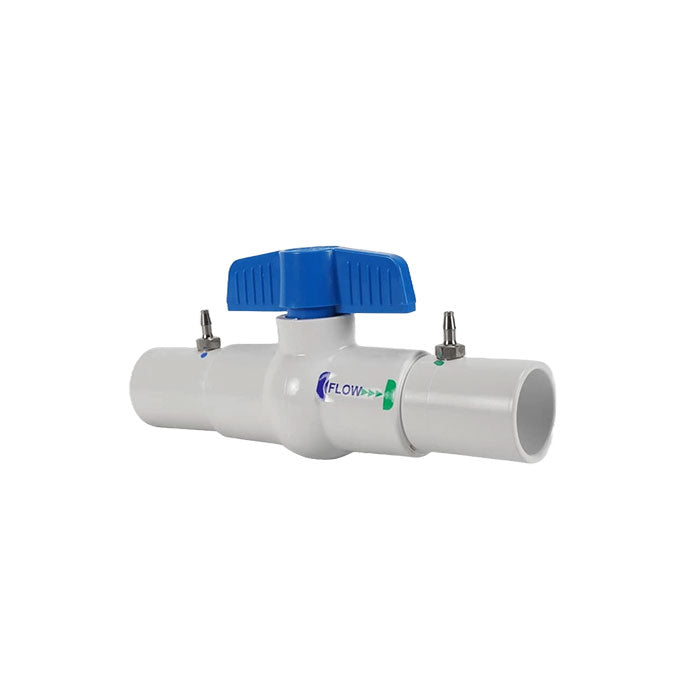

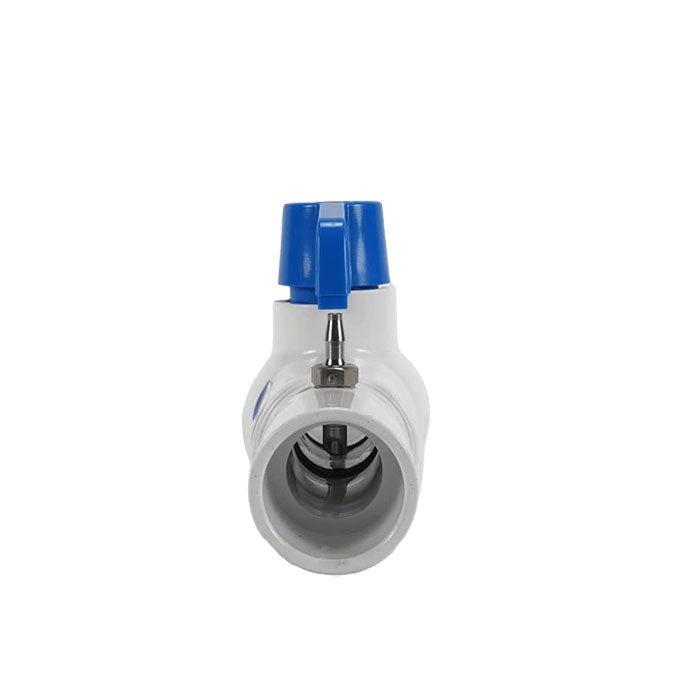

Ez-Flo Fertilizing cbv-200 Slip Ball Valve 2 in.

Product Description

The EZ-FLO FERTILIZING CBV-200 slip ball valve is a 2-inch valve with a max PSI of 80. These ball valve coupling connectors are available for mainline sizes ranging from 3/4 to 4 inches with socket x socket connections for gluing into PVC pipe. They are manufactured from Schedule 40 PVC with 1/4 304 stainless steel barbed tubing connections.

• Connects the EZ-FLO system to the irrigation flow line.
• Adjusts the differential pressure between the inlet and outlet connections.
• Ensures injection across a wide range of flow rates.

Product Highlights

This ball valve is designed to connect the EZ-FLO system to the irrigation flow line, adjust differential pressure, and ensure effective injection.

Product Information

Standard Information

• Brand: EZ-FLO FERTILIZING
• Manufacturer Part Number: CBV-200

Technical Specifications

• Brand: EZ-Flo
• Product Type: EZ Flo Fertilizer System Parts and Accessories
• Max PSI: 80
• Size: 2 in.
• Coupling Size: 2 in.
• MPN: CBV-200
• Connection Size: 2 in.
• Connection Type: Slip
• Pressure Rating: 80 psi
• Schedule: Schedule 40
• Prop 65: false
• Hazardous Material: false
• UPC: 653341381118
• ETL Listed: No
• UL Listed: No
• Auto-Dosing Product Type: Accessories & Fittings
• For Use With: EZ-FLO Injection Systems
